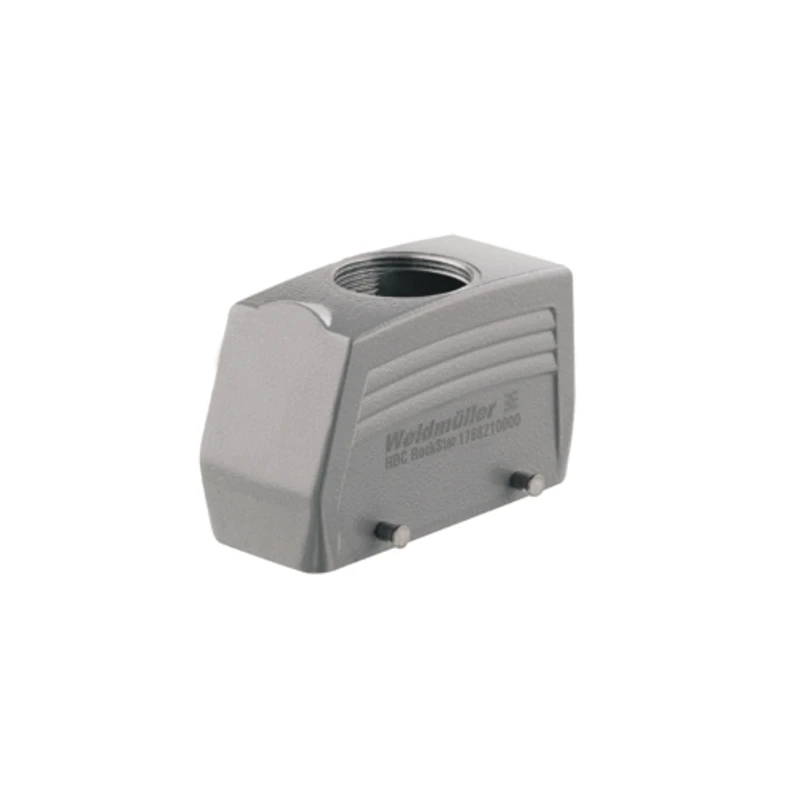

HDC 16B TOBU Top Entry Enclosure M25 Size 6
HDC 16B TOBU Top Entry Enclosure M25 Size 6
HDC 16B TOBU Top Entry Enclosure M25 Size 6 - Image 2
HDC 16B TOBU Top Entry Enclosure M25 Size 6 - Image 3

HDC 16B TOBU Top Entry Enclosure M25 Size 6

£13.91 Incl. VAT

Weidmüller HDC Enclosure is manufactured from die-cast aluminium with powder coating finish. The special die-cast alloy and the multi-layered surface sealing provide complete protection for the HDC housings. The cleverly designed interlock system is manufactured from stainless steel which guarantees a long lifespan with high resistance to corrosion and impact. The unique, patented spring system provides the housing interlock with a secure grip and prevents accidental opening. Each housing is permanently labelled with a laser marking so that each product can be quickly designated and positioned. · · · Locking type: Side-locking clamp (lower side) · · 1 Cable entry on top · · M25 Internal thread · · Limiting temperature -40 to 125°C · · IP65 degree of protection · · Unsuitable for ModuPlug®

Out of stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 1788210000 Categories: , , Brand: Part Number: 2500628822

Description

Technical Specifications  Technical Specifications Housing for industrial connectors Mounting method of the cable gland Metric Coating housing Powder coated Housing colour Grey Position of the shackle Base unit Type of housing Plug case Degree of protection (IP), mounted IP65 Housing material Aluminium Position cable feed Above Width 93.3 mm Length 93.3 mm Height 61 mm Operating temperature -40 – 125 °C Number of openings 1 Number of conduit inlets 1 Depth 59 mm With cable screw gland No UV resistant Yes With interlocking device Yes Corrosion resistant Yes EMC-version No With hinged lid No · Technical Data Sheet – Click to Download
