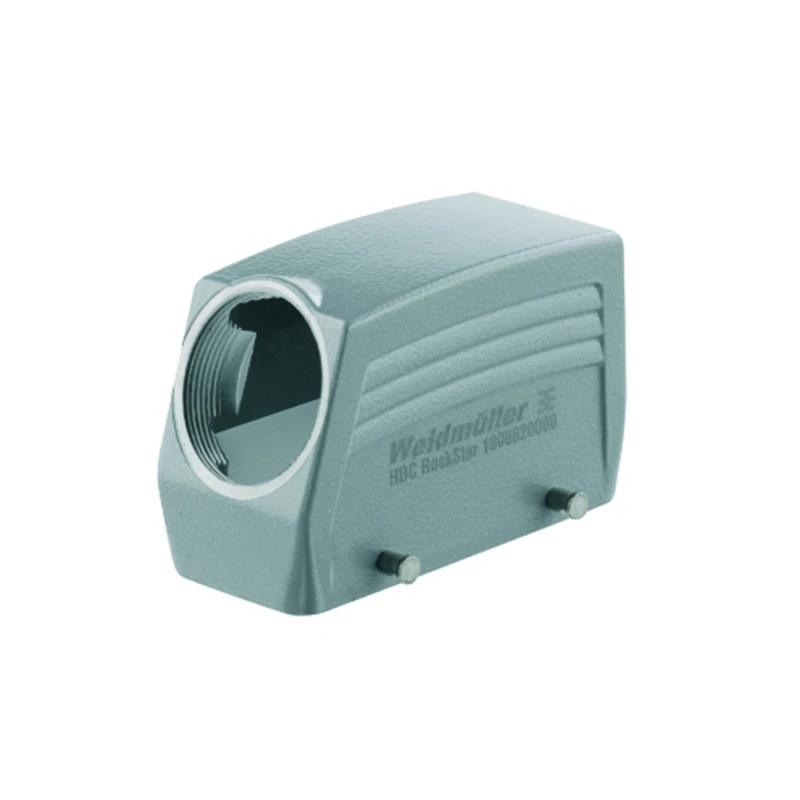

HDC 16B TSBU Side Entry Enclosure M25 Size 6
HDC 16B TSBU Side Entry Enclosure M25 Size 6
HDC 16B TSBU Side Entry Enclosure M25 Size 6 - Image 2
HDC 16B TSBU Side Entry Enclosure M25 Size 6 - Image 3

HDC 16B TSBU Side Entry Enclosure M25 Size 6

£13.32 Incl. VAT

Weidmüller HDC Enclosure is manufactured from die-cast aluminium with powder coating finish. The special die-cast alloy and the multi-layered surface sealing provide complete protection for the HDC housings. The cleverly designed interlock system is manufactured from stainless steel which guarantees a long lifespan with high resistance to corrosion and impact. The unique, patented spring system provides the housing interlock with a secure grip and prevents accidental opening. Each housing is permanently labelled with a laser marking so that each product can be quickly designated and positioned. · · · Locking type: Side-locking clamp (lower side) · · 1 Cable entry on side · · M25 Internal thread · · Limiting temperature -40 to 125°C · · IP65 degree of protection · · Unsuitable for ModuPlug®

Out of stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 1788180000 Categories: , , Brand: Part Number: 2500628820

Description

Technical Specifications  Technical Specifications Housing for industrial connectors Position cable feed Sideways Housing colour Grey Mounting method of the cable gland Metric Coating housing Powder coated Position of the shackle Base unit Degree of protection (IP), mounted IP65 Housing material Aluminium Number of conduit inlets 1 Operating temperature -40 – 125 °C Number of openings 1 Depth 59 mm Height 61 mm Length 93.3 mm Width 93.3 mm Type of housing Plug case UV resistant Yes With hinged lid No With cable screw gland No With interlocking device Yes Corrosion resistant Yes EMC-version No · Technical Data Sheet – Click to Download
