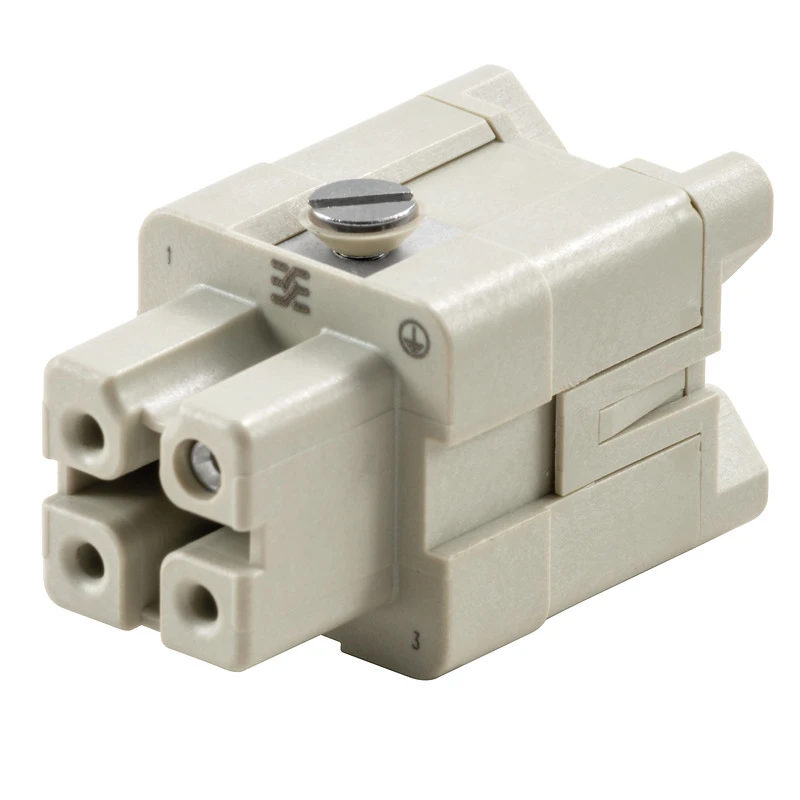

Weidmuller HDC HA 3 Pole M3 Female Insert Screw Connection 400V Size 1
Weidmuller HDC HA 3 Pole M3 Female Insert Screw Connection 400V Size 1
Weidmuller HDC HA 3 Pole M3 Female Insert Screw Connection 400V Size 1 - Image 2

Weidmuller HDC HA 3 Pole M3 Female Insert Screw Connection 400V Size 1

£7.75 Incl. VAT

Weidmüller HDC Female Insert is made up of a copper alloy with a silver passivated finish, insulated using reinforced PC glass fibre (UL-listed and railway certified). The small and slim HA series can be used wherever space is limited. The wire connection level is designed for screw connections. · · · Conductor cross-section: 0.5-2.5mm² · · 16 A rated current · · Pollution severity: 3 · · Plugging cycles = 500 · · Stripping length: 15mm · · Max Torque for main contact: 0.5Nm · · Flammability acc. to UL 94: V-0 · · Rated voltage conducter-earth: 230V · · Rated voltage conducter-conductor: 400V · · Rated impulse voltage: 4kV

Typically available in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 1498200000 Categories: , , Brand: Product Code: 2500184770

Description

Technical Specifications  Technical Specifications Contact insert for industrial connectors Contact type Bus Inflammability class of insulation material acc. with UL94 V0 Material contact Copper Material of contact surface Silver Depth 21 mm Type of electric connection Screw connection Height 36.5 mm Width 21 mm Rated current In 16 A Rated voltage 400 V Number of poles 3 Min. number of insertion cycles 500 Connectable conductor cross section fine-strand without cable end sleeve 0.5 – 2.5 mm² Connectable conductor cross section fine-strand with cable end sleeve 0.5 – 2.5 mm² Connectable conductor cross section solid-core 0.5 – 2.5 mm² Operating temperature -40 – 125 °C · Technical Data Sheet – Click to Download
