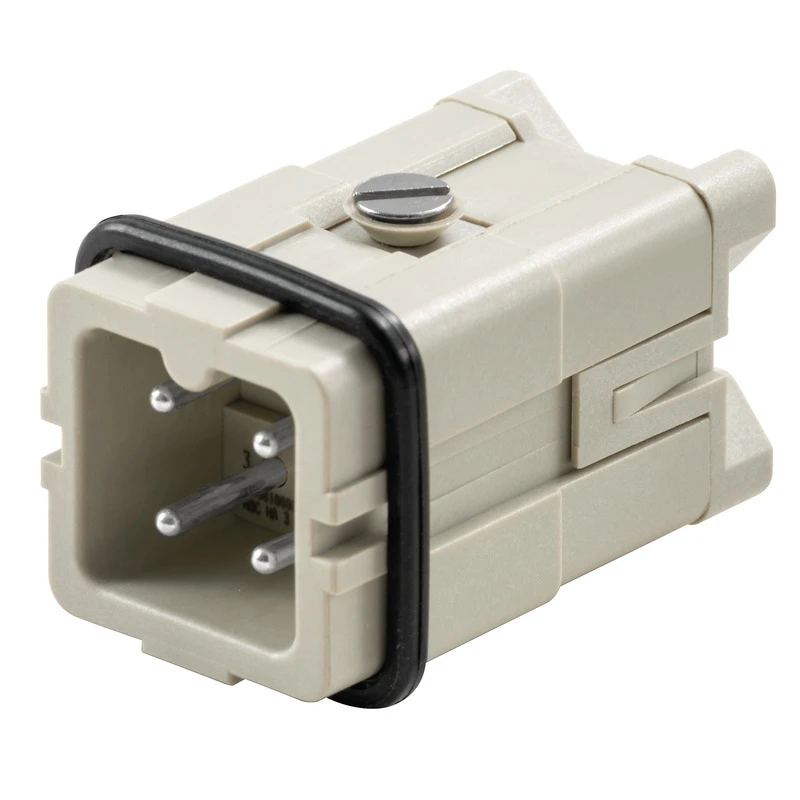

HDC HA 3 Pole M3 Male Insert Screw Connection 400V Size 1
HDC HA 3 Pole M3 Male Insert Screw Connection 400V Size 1
HDC HA 3 Pole M3 Male Insert Screw Connection 400V Size 1 - Image 2

HDC HA 3 Pole M3 Male Insert Screw Connection 400V Size 1

£8.21 Incl. VAT

Weidmüller HDC Male Insert is made up of a copper alloy with a silver passivated finish, insulated using reinforced PC glass fibre (UL-listed and railway certified). The small and slim HA series can be used wherever space is limited. The wire connection level is designed for screw connections. · · · The small and thin HA series can be used wherever space is limited. · · 16 A rated current · · Pollution severity: 3 · · Plugging cycles = 500 · · Stripping length: 15mm · · Max Torque for main contact: 0.5Nm · · Flammability acc. to UL 94: V-0 · · Rated voltage conducter-earth: 230V · · Rated voltage conducter-conductor: 400V · · Rated impulse voltage: 4kV

Out of stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 1498100000 Categories: , , Brand: Part Number: 2500184863

Description

Technical Specifications  Technical Specifications Contact insert for industrial connectors Inflammability class of insulation material acc. with UL94 V0 Contact type Pin Material contact Copper Material of contact surface Silver Type of electric connection Screw connection Width 21 mm Depth 21 mm Height 36.5 mm Rated voltage 400 V Number of poles 3 Rated current In 16 A Min. number of insertion cycles 500 Connectable conductor cross section fine-strand without cable end sleeve 0.5 – 2.5 mm² Connectable conductor cross section fine-strand with cable end sleeve 0.5 – 2.5 mm² Connectable conductor cross section solid-core 0.5 – 2.5 mm² Operating temperature -40 – 125 °C · Technical Data Sheet – Click to Download
