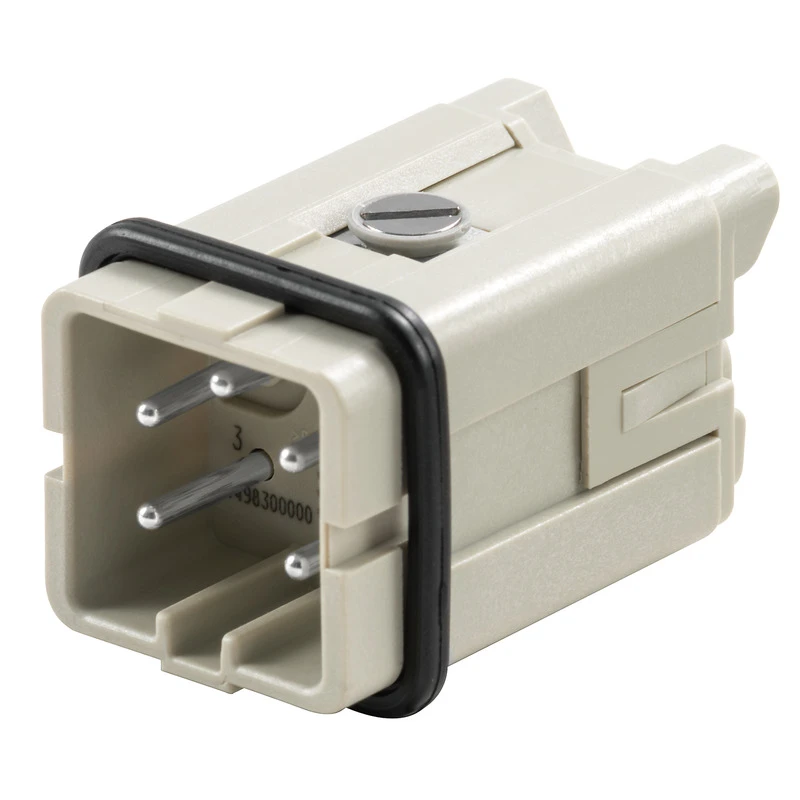

Weidmuller HDC HA 4 Pole M3 Male Insert Screw Connection 400V Size 1
Weidmuller HDC HA 4 Pole M3 Male Insert Screw Connection 400V Size 1
Weidmuller HDC HA 4 Pole M3 Male Insert Screw Connection 400V Size 1 - Image 2

Weidmuller HDC HA 4 Pole M3 Male Insert Screw Connection 400V Size 1

£9.08 Incl. VAT

Weidmüller HDC Male Insert is made up of a copper alloy with a silver passivated finish, insulated using reinforced PC glass fibre (UL-listed and railway certified). The small and slim HA series can be used wherever space is limited. The wire connection level is designed for screw connections. · · · Conductor cross-section: 0.5-2.5mm² · · 16 A rated current · · Pollution severity: 3 · · Plugging cycles = 500 · · Stripping length: 15mm · · Max Torque for main contact: 0.5Nm · · Flammability acc. to UL 94: V-0 · · Rated voltage conducter-earth: 230V · · Rated voltage conducter-conductor: 400V · · Rated impulse voltage: 4kV

Typically available in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 1498300000 Categories: , , Brand: Product Code: 2500184865

Description

Technical Specifications  Technical Specifications Contact insert for industrial connectors Inflammability class of insulation material acc. with UL94 V0 Contact type Pin Material of contact surface Silver Material contact Copper Width 21 mm Type of electric connection Screw connection Rated current In 16 A Rated voltage 400 V Number of poles 4 Min. number of insertion cycles 500 Height 36.5 mm Depth 21 mm Connectable conductor cross section fine-strand with cable end sleeve 0.5 – 2.5 mm² Connectable conductor cross section fine-strand without cable end sleeve 0.5 – 2.5 mm² Connectable conductor cross section solid-core 0.5 – 2.5 mm² Operating temperature -40 – 125 °C · Technical Data Sheet – Click to Download
