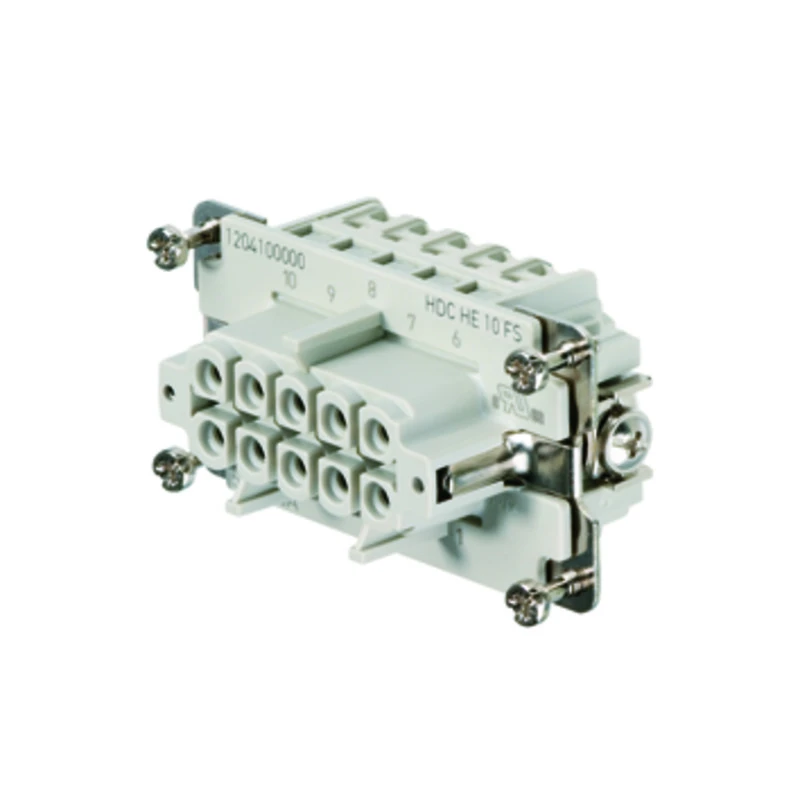

HDC HE 10 Pole M4 Female Insert Screw Connection Size 4

Description

Technical Specifications  Technical Specifications Contact insert for industrial connectors Material of contact insert Plastic Shape Rectangular Inflammability class of insulation material acc. with UL94 V0 Material connector of connector insert Thermoplastic Contact type Bus Material contact Copper Material of contact surface Silver Pollution degree 3 Type of electric connection Screw connection Diameter plug-in contact 3.6 mm Number of poles 10 Min. number of insertion cycles 500 Height 35.2 mm Width 64 mm Depth 34 mm Rated surge voltage 6 kV Connectable conductor cross section fine-strand with cable end sleeve 0.5 – 2.5 mm² Operating temperature -40 – 125 °C Connectable conductor cross section multi-wired 0.5 – 4 mm² Connectable conductor cross section solid-core 0.5 – 2.5 mm² Connectable conductor cross section fine-strand without cable end sleeve 0.5 – 2.5 mm² Ambient temperature -40 – 125 °C Rated voltage 500 V Rated current In 16 A Modular version No With wire protection Yes Contact insert without contacts No With housing No With protective conductor Yes · Technical Data Sheet – Click to Download
