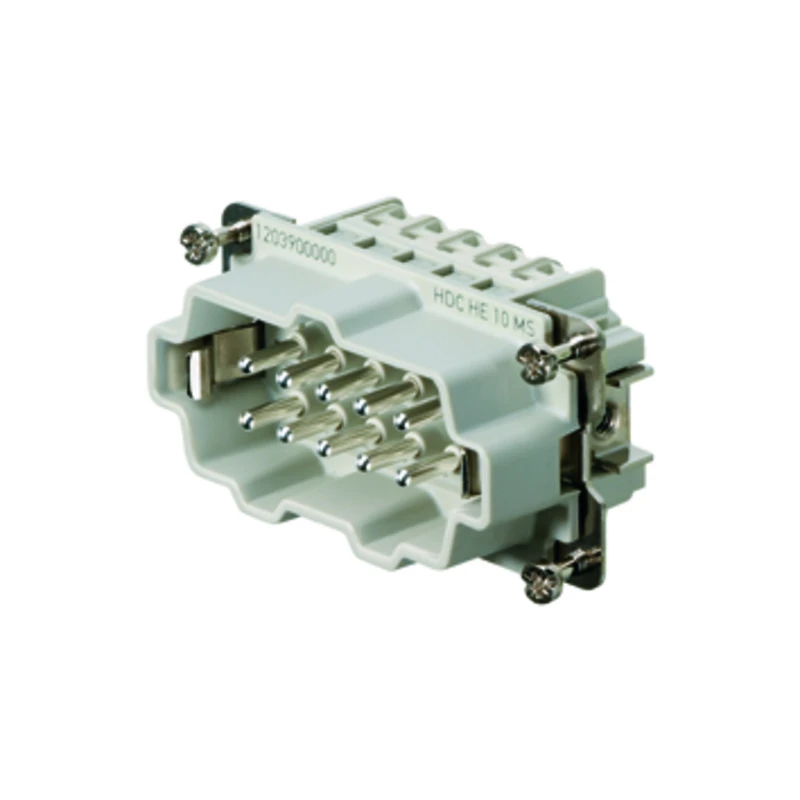

HDC HE 10 Pole M4 Male Insert Screw Connection Size 4

Description

Technical Specifications  Technical Specifications Contact insert for industrial connectors Shape Rectangular Material of contact insert Plastic Material connector of connector insert Thermoplastic Inflammability class of insulation material acc. with UL94 V0 Contact type Pin Material contact Copper Width 64 mm Rated surge voltage 6 kV Rated voltage 500 V Height 35.7 mm Depth 34 mm Type of electric connection Screw connection Pollution degree 3 Material of contact surface Silver Diameter plug-in contact 3.6 mm Connectable conductor cross section solid-core 0.5 – 4 mm² Connectable conductor cross section fine-strand with cable end sleeve 0.5 – 2.5 mm² Connectable conductor cross section fine-strand without cable end sleeve 0.5 – 2.5 mm² Ambient temperature -40 – 125 °C Number of poles 10 Rated current In 16 A Min. number of insertion cycles 500 Connectable conductor cross section multi-wired 0.5 – 4 mm² Operating temperature -40 – 125 °C With wire protection Yes Contact insert without contacts No With housing No Modular version No With protective conductor Yes · Technical Data Sheet – Click to Download
