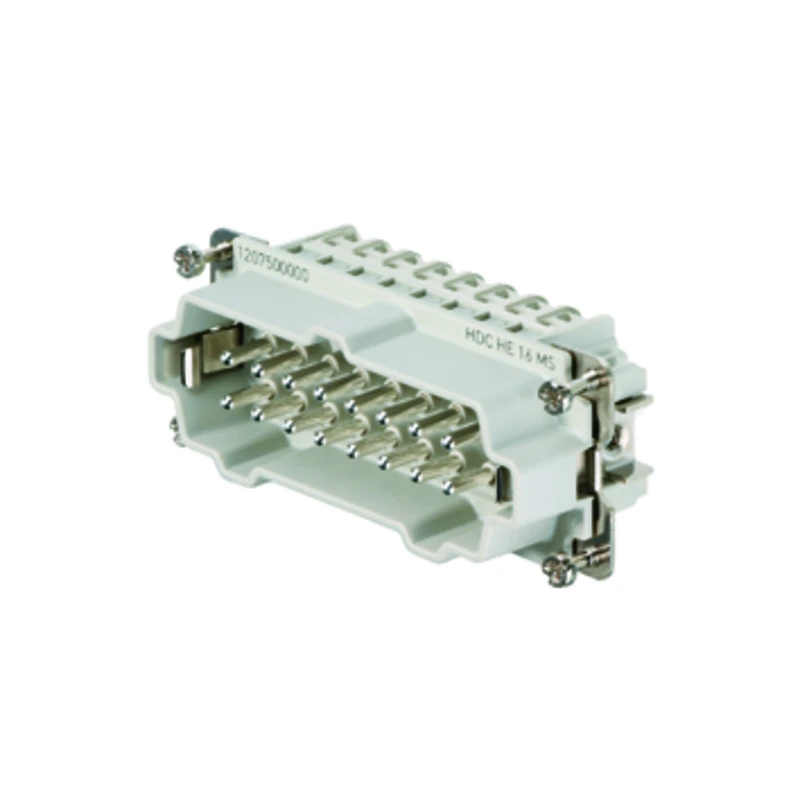

HDC HE 16 Pole M4 Male Insert Screw Connection Size 6

Description

Technical Specifications  Technical Specifications Contact insert for industrial connectors Shape Rectangular Material of contact insert Plastic Material connector of connector insert Thermoplastic Inflammability class of insulation material acc. with UL94 V0 Contact type Pin Material contact Copper Type of electric connection Screw connection Number of poles 16 Rated voltage 500 V Width 84.5 mm Depth 34 mm Pollution degree 3 Material of contact surface Silver Min. number of insertion cycles 500 Connectable conductor cross section fine-strand with cable end sleeve 0.5 – 2.5 mm² Connectable conductor cross section fine-strand without cable end sleeve 0.5 – 2.5 mm² Ambient temperature -40 – 125 °C Height 35.7 mm Rated current In 16 A Diameter plug-in contact 3.6 mm Rated surge voltage 6 kV Connectable conductor cross section solid-core 0.5 – 2.5 mm² Connectable conductor cross section multi-wired 0.5 – 4 mm² Operating temperature -40 – 125 °C With wire protection Yes Contact insert without contacts No With protective conductor Yes With housing No Modular version No · Technical Data Sheet – Click to Download
