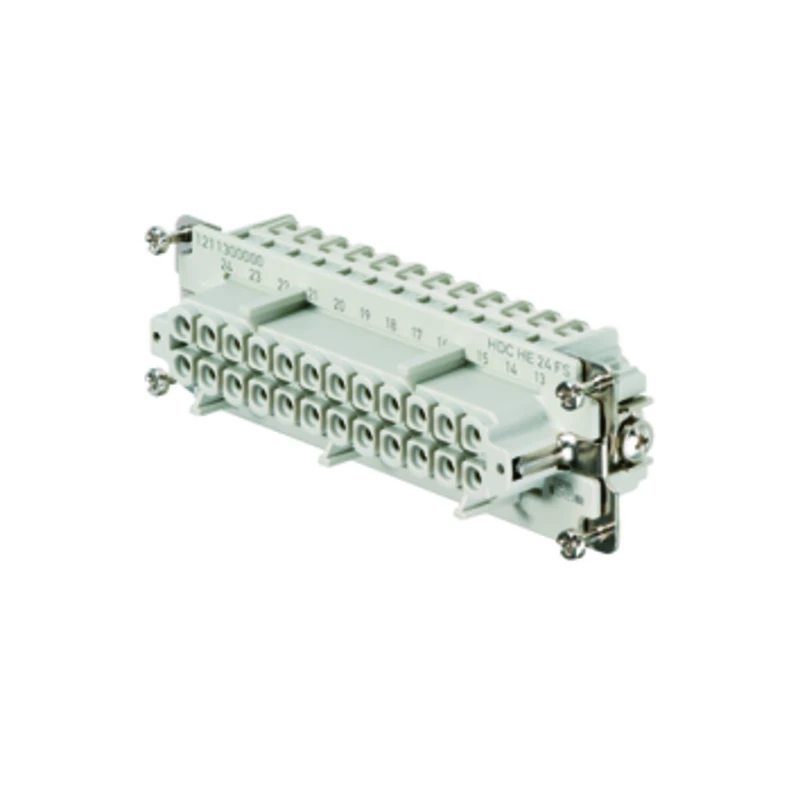

HDC HE 24 Pole M4 Female Insert Screw Connection Size 8

Description

Technical Specifications  Technical Specifications Contact insert for industrial connectors Material of contact insert Plastic Shape Rectangular Material connector of connector insert Thermoplastic Inflammability class of insulation material acc. with UL94 V0 Contact type Bus Material contact Copper Material of contact surface Silver Pollution degree 3 Type of electric connection Screw connection Rated surge voltage 6 kV Diameter plug-in contact 3.6 mm Number of poles 24 Depth 34 mm Height 35.2 mm Width 111 mm Rated voltage 500 V Connectable conductor cross section fine-strand with cable end sleeve 0.5 – 2.5 mm² Operating temperature -40 – 125 °C Connectable conductor cross section multi-wired 0.5 – 4 mm² Connectable conductor cross section solid-core 0.5 – 2.5 mm² Connectable conductor cross section fine-strand without cable end sleeve 0.5 – 2.5 mm² Ambient temperature -40 – 125 °C Rated current In 16 A Min. number of insertion cycles 500 With housing No Contact insert without contacts No With wire protection Yes With protective conductor Yes Modular version No · Technical Data Sheet – Click to Download
