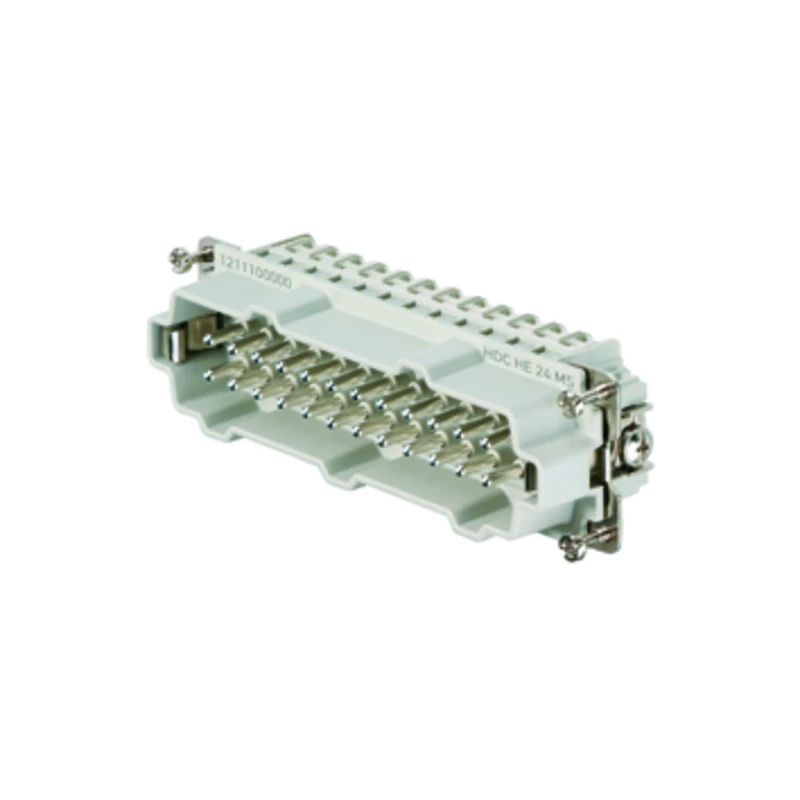

Weidmuller HDC HE 24 Pole M4 Male Insert Screw Connection Size 8

Description

Technical Specifications  Technical Specifications Contact insert for industrial connectors Material of contact insert Plastic Inflammability class of insulation material acc. with UL94 V0 Contact type Pin Material contact Copper Material connector of connector insert Thermoplastic Material of contact surface Silver Pollution degree 3 Type of electric connection Screw connection Depth 34 mm Width 111 mm Diameter plug-in contact 3.6 mm Rated surge voltage 6 kV Min. number of insertion cycles 500 Height 35.7 mm Rated voltage 500 V Number of poles 24 Rated current In 16 A Ambient temperature -40 – 125 °C Connectable conductor cross section fine-strand without cable end sleeve 0.5 – 2.5 mm² Connectable conductor cross section fine-strand with cable end sleeve 0.5 – 2.5 mm² Connectable conductor cross section solid-core 0.5 – 2.5 mm² Connectable conductor cross section multi-wired 0.5 – 4 mm² Operating temperature -40 – 125 °C With wire protection Yes Contact insert without contacts No With protective conductor Yes · Technical Data Sheet – Click to Download
