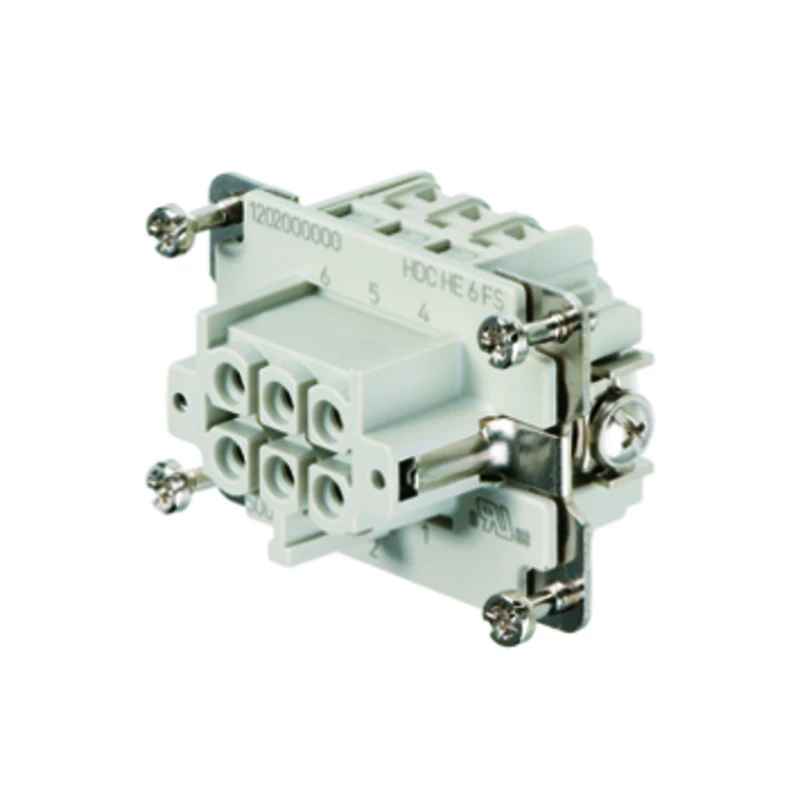

HDC HE 6 Pole M4 Female Insert Screw Connection Size 3

Description

Technical Specifications  Technical Specifications Contact insert for industrial connectors Material of contact insert Plastic Material connector of connector insert Thermoplastic Shape Rectangular Inflammability class of insulation material acc. with UL94 V0 Material contact Copper Contact type Bus Material of contact surface Silver Pollution degree 3 Type of electric connection Screw connection Depth 34 mm Width 51 mm Rated voltage 500 V Ambient temperature -40 – 125 °C Height 35.2 mm Rated current In 24 A Number of poles 6 Diameter plug-in contact 3.6 mm Min. number of insertion cycles 500 Rated surge voltage 6 kV Connectable conductor cross section fine-strand without cable end sleeve 0.5 – 2.5 mm² Connectable conductor cross section fine-strand with cable end sleeve 0.5 – 2.5 mm² Connectable conductor cross section solid-core 0.5 – 2.5 mm² Connectable conductor cross section multi-wired 0.5 – 4 mm² Operating temperature -40 – 125 °C With wire protection Yes Contact insert without contacts No With protective conductor Yes With housing No Modular version No · Technical Data Sheet – Click to Download
