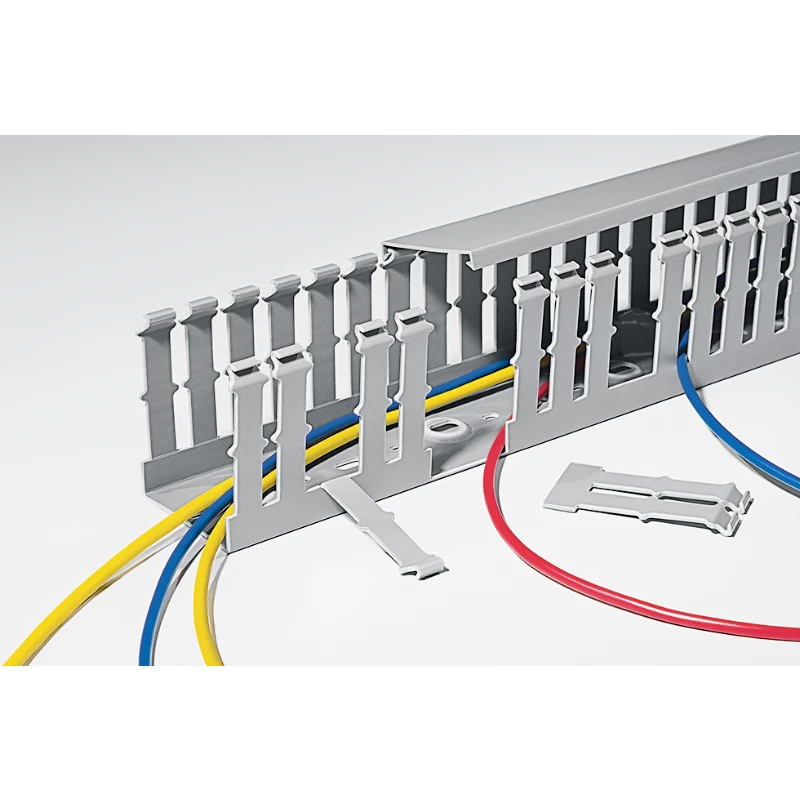

HellermannTyton Wiring duct 25×80 mm, 2000 mm, PVC, grey
£12.59 Incl. VAT
HelaDuct HTWD-PW for large-diameter wires (metric sizes) · · · Wide slots suitable for large-diameter wires · · Wide fingers provide additional wire support · · Smooth, burr-free edges protect installers from injury and wires from damage · · Fingers can be removed with no sharp edges at pre-notched snap-off points · · Further pre-notched snap-off point at base of sidewall allow cutting out and removing sections of sidewall with no sharp edges · · Raised mounting points for easily, quickly and securely fastening wire retainers and other accessories prior to cabling · · Wire retainers and accessories leave no protruding parts below surface of duct · · Duct covers are easy to mount and remove, yet hold securely even in a vertical position and under vibration · · Base perforation according to DIN EN 50089
Description
Technical Specifications Technical Specifications Slotted cable trunking system Colour Grey Type of side wall Slotted Type of fastening Bottom perforation Width 25 mm RAL number – Height 80 mm Length 2000 mm Useful cross section 1485 mm² Diameter – mm Slit width 8 mm Distance of slots 12 mm Halogen free No Self-extinguishing Yes With cover Yes Flexible No
