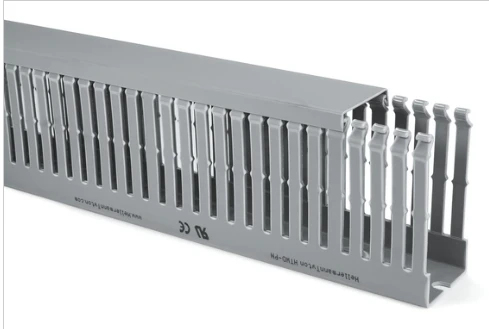

HellermannTyton Wiring duct 60×60 mm, 2000 mm, PVC, grey
£15.18 Incl. VAT
HelaDuct HTWD-PN for small-diameter wires (metric sizes) · · · Narrow slots suitable for small-diameter wires · · Smooth, burr-free edges protect installers from injury and wires from damage · · Fingers can be removed with no sharp edges at pre-notched snap-off points · · Further pre-notched snap-off point at base of sidewall allow cutting out and removing sections of sidewall with no sharp edges · · Duct covers hold securely even in a vertical position and under vibration · · Base perforation according to DIN EN 50092
Description
Technical Specifications Technical Specifications Slotted cable trunking system Type of side wall Slotted Colour Grey Type of fastening Bottom perforation Width 60 mm Height 60 mm Length 2000 mm RAL number – Diameter – mm Slit width 4 mm Useful cross section 2708 mm² Flexible No Distance of slots 6 mm Self-extinguishing Yes With cover Yes Halogen free No · Technical Data Sheet – Click to Download
