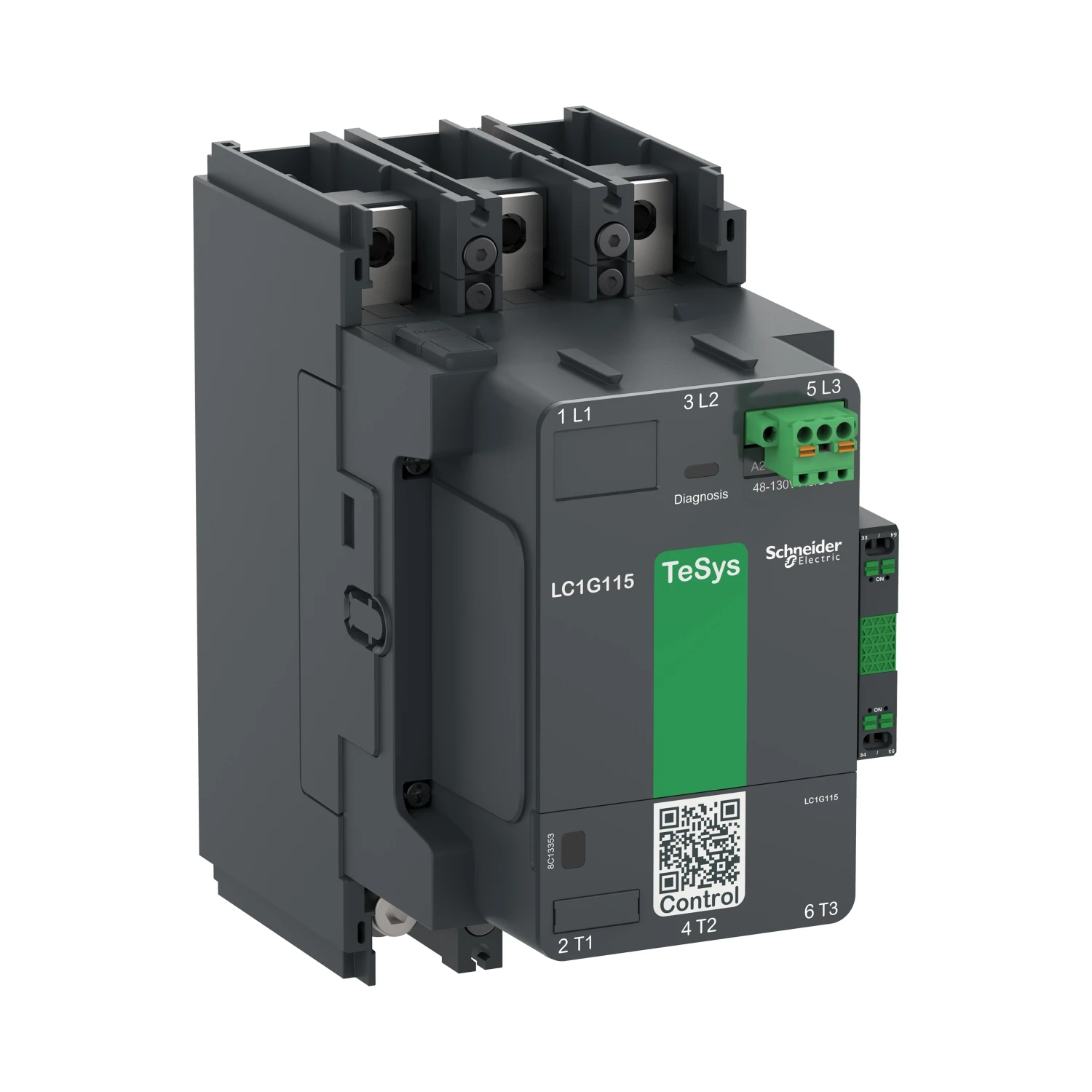

High Power Contactor, TeSys Giga, 3 pole (3NO), AC-3=440V 150A, standard version, 100…250V wide band AC/DC coil

TeSys Giga contactors, Contactors to control motors up to 800 A (450 kW / 400V) or switch power up to 1050A. TeSys Giga is the range of high current contactors from 115 A to 800 A for AC-3 (motor) applications and from 250 A to 1050 A for AC-1 (resistive) applications. · · · TeSys Giga high power contactor, 3 poles (3 NO) for category AC-3 applications up to 150A 90kW at 440V. · · It provides a 100-250V AC/DC wide band low consumption electronic coil and embedded highly reliability 1NO+1NC auxiliary contact block (17V 1mA). · · Designed for demanding applications with maximum operating rates up to 600 cycles per hour and environments until 60°C. · · It procures high reliability and durability with 5 Mcycles mechanical durability. · · Local Contact Wear Diagnosis (CWD) as standard function, continuous monitoring with healthy and alarm indicators. · · It is possibility to replace switching module (main contacts), enhancement contactor life. · · Contactor can be fixed in all quadrants, maintenance without removing cables/busbars, and OLR could be directly mounted below contactor. · · To be used with power connection by bolted connection and control connections by spring terminals, accessible from front for easy and quick replacement. · · It provides IP2x protection in Front face with shrouds conforming to IEC 60529 and VDE 0106. · · It can cover -25°C to 60°C operation ambient air temperature and directly mounted on plate, No derating up to 3000m altitude.
