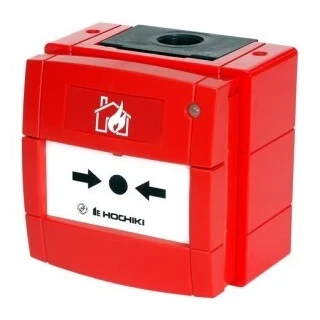

Hochiki Weatherproof Addressable Call Point With Sci Red

Model HCP-W(SCI) is a weatherproof Manual Call Point with integral short-circuit isolator, which is fully compatible with Hochikis ESP analogue addressable protocol. The unit incorporates a bi-coloured LED, which can be selected as pulsing/non-pulsing* for communications polling and is continuously lit when the HCP-W(SCI) is operated in these two states the LED will show red. The LED will show amber when a short-circuit is present but will switch to red if the unit is activated. The unit operates by pressing the EN54 compliant non-frangible (plastic) element and produces a high level ESP interrupt. A built in test function initiated by the control panel ensures the integrity of the device at all times and the device can be tested by insertion of a test key in the underside of the unit. Two terminal blocks are provided for easy connection to the loop wiring. · · · Fast response · · Integral short-circuit isolator · · Bi-coloured status LED · · Non-frangible element fitted as standard (conforms to EN54) · · Addressed with TCH-B100 Hand Held Programmer · · Surface mounted · · IP67 rated · · LPCB approved to EN54
