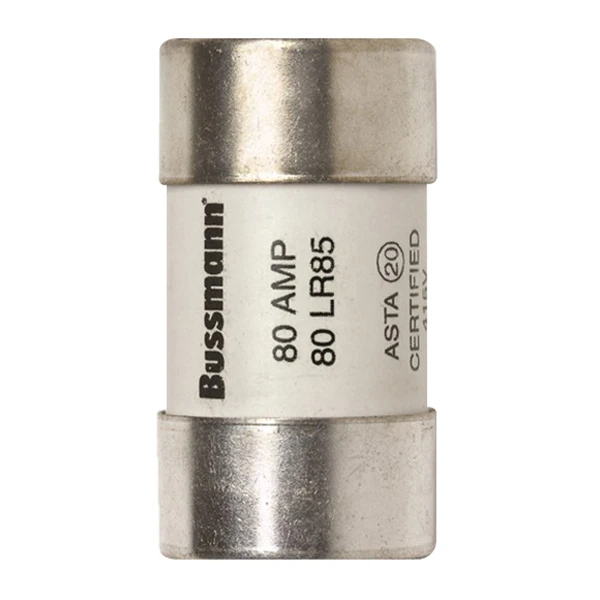

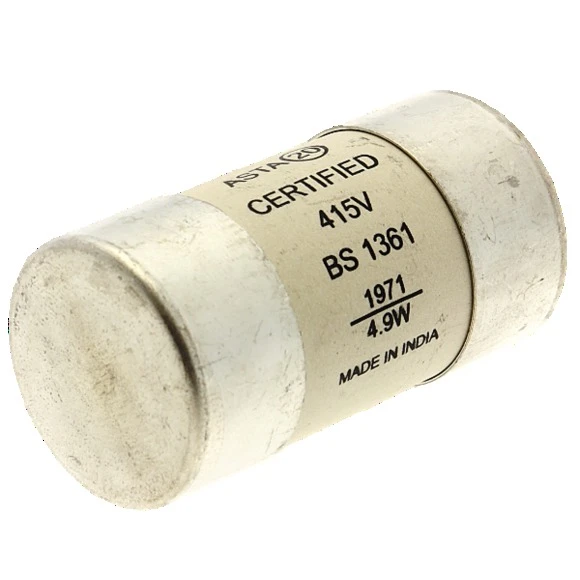

House service fuse-link LV 80 A AC 415 V BS system C type II 30 x 57 mm gL/gG BS
House service fuse-link LV 80 A AC 415 V BS system C type II 30 x 57 mm gL/gG BS
House service fuse-link LV 80 A AC 415 V BS system C type II 30 x 57 mm gL/gG BS - Image 2
House service fuse-link LV 80 A AC 415 V BS system C type II 30 x 57 mm gL/gG BS - Image 3
House service fuse-link LV 80 A AC 415 V BS system C type II 30 x 57 mm gL/gG BS - Image 4

House service fuse-link LV 80 A AC 415 V BS system C type II 30 x 57 mm gL/gG BS

£9.47 Incl. VAT

Eaton Bussmann Low Voltage House Service Fuse Link is suitable for protection of incoming cables into residential and commercial properties. It is designed for use in conventional house service cut-outs. · · · Designed for use in conventional house service cut-outs · · Protection of incoming cables into residential and commercial properties · · BS system C type-II construction size · · gG class of operation · · ASTA certified, BS1361: 1971 including amendments 1, 2 and 3

81 available – delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 80LR85 Categories: , , Brand: Part Number: 2500010586

Description

Technical Specifications  Technical Specifications Cylindrical fuse Utilization category gG (cable protection/equipment protection) Size 23×57 mm Model Ceramic fuse Power loss at rated current 4.9 W Voltage type AC Breaking capacity 33 kA Rated voltage 415 V Rated current 80 A Rated operating frequency 45 – 62 Hz · Technical Data Sheet – Click to Download
