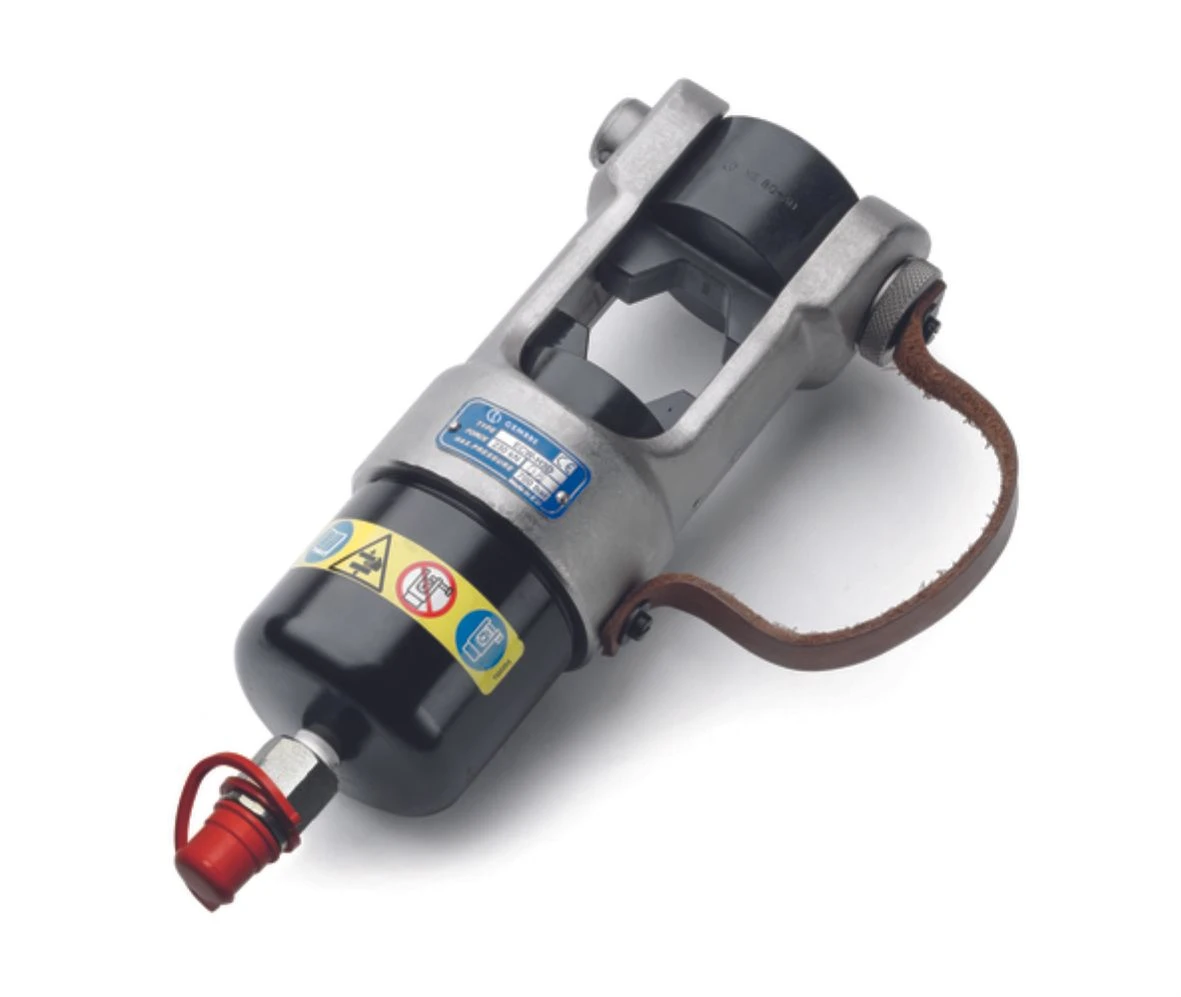

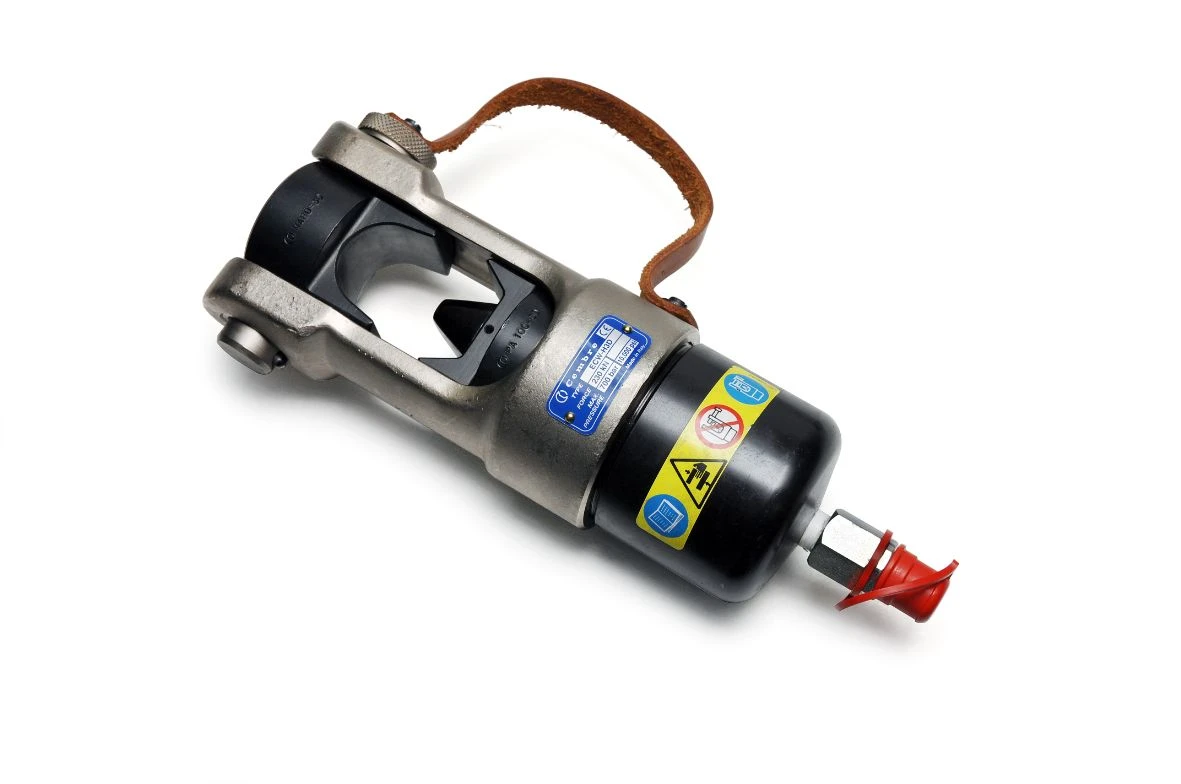

Hydraulic Press Head

£1,174.38 Incl. VAT

Hydraulic presshead to accept ‘3D’ style dies 400mm² – 630mm², will also accept ‘C’ style dies 10mm² – 400mm² when AU230-130D adaptor is used · · · 230kV Crimping Force · · CE Marked · · 700 Bar Max Pressure · · Durable moulded body offering high resistance to wear · · Max. Crimping Size Lugs (Mm²) – 630mm

3 available – delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: ECW-H3D Categories: , , Brand: Part Number: 2500162089

Description

Technical Specifications  Technical Specifications Crimping tool for cable terminations and connections Compression shape Universal (exchangeable inserts) Construction/operation Hydraulic compression head Suitable for Various applications Length 290 mm Number of included inserts – Cross section 8 – 630 mm² AWG-range 1250 – 8 Compression force 0 – 230 kN With locking device (for mechanical tools) No With automatic return Yes Inserts exchangeable Yes · Technical Data Sheet – Click to Download
