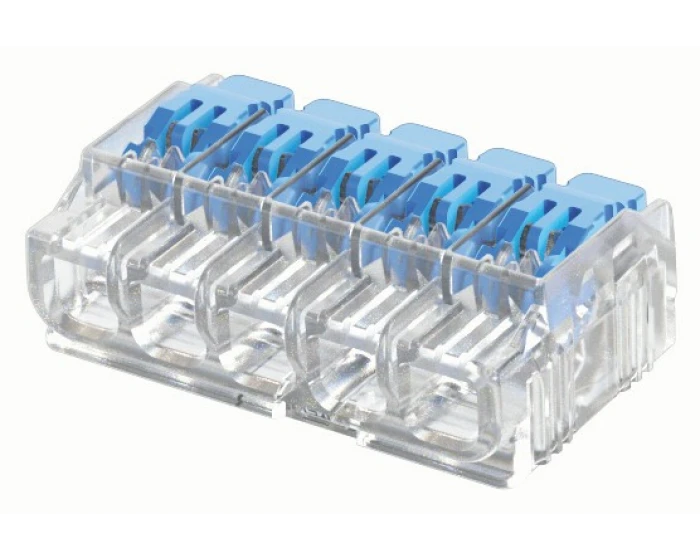

Ideal 30-095 Gen II 5 Port Lever Connector

The Gen II 5 Port Lever Connector is a reusable wire connector that is designed to make electrical connections quickly and easily. It is compatible with solid, stranded, and flexible wires up to 4mm² (12AWG) and 32 Amps. The connector has a clear shell that allows for verification of the connection, and a continuity check port for testing. The levers open in the opposite direction of the insertion point, which helps to prevent accidental loosening or pull out. The connector is also compact and easy to use, making it a great choice for a variety of electrical applications. · · · Resealable Connector For Solid Stranded And Flexible Wires · · Innovate Levers That Open In The Opposite Direction Of Insertion Points · · Continuity Check Port For Testing · · Clear Shell Allows For Verification Of Connection · · Innovate Levers That Open In The Opposite Direction Of Insertion Points · · Continuity Check Port For Testing · · Clear Shell Allows For Verification Of Connection · · Wire Clamping Range 0.2mm2 To 4mm2 For Solid And Stranded Wires And 0.14 mm2 To 4mm2 For Flexible Wires · · 18th Edition IEC60998 And UL486C Compliant · · CE UKCAUL And ENEC Approved
