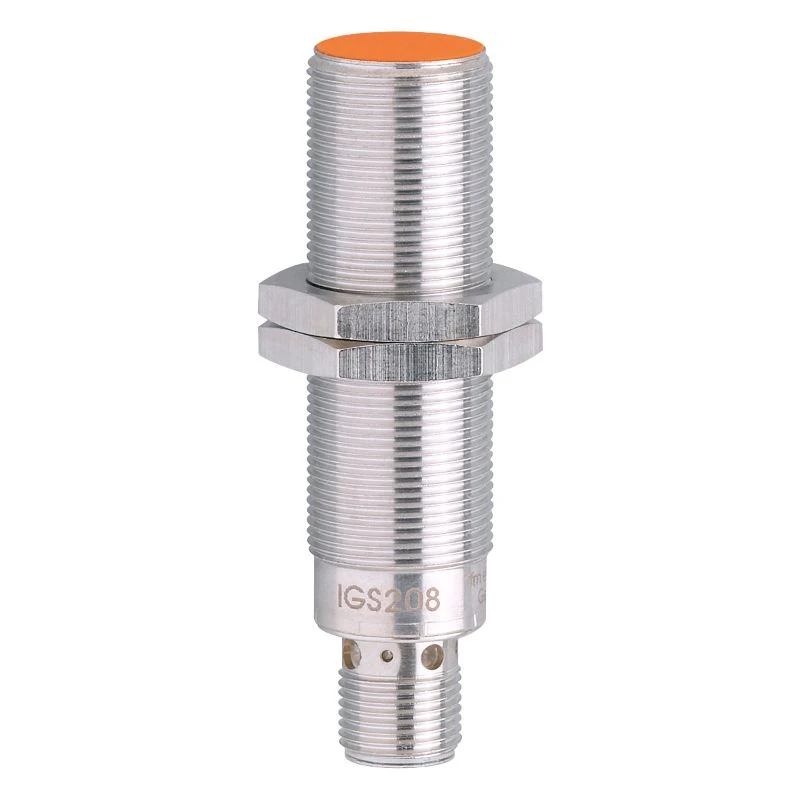

IFM 10-30VDC 2/3 Wire Inductive Sensor 8mm Sensing Range PBT 400Hz M12/M18 x 1

IFM Inductive Sensor (normally open) made up of a white bronze coated M18 brass thread and a M12 electrical connector with gold plated contacts. This sensor also has an active face made up of orange polybutylene terephthalate (PBT). The electrical design for this sensor is a 3 wire DC PNP (2 wire NPN possible) and the operating voltage is between 10-30V DC. · · · 8mm sensing range (0-6.5mm operating) · · Quick disconnect · · Flush mountable · · Switching frequency: 400Hz · · 1 Red setting aid LED and 1 yellow output status indication LED · · Current Rating: 100mA · · Reverse polarity, short-circuit and overload protection · · Protection class: II · · Ambient temperature: -25 to 70°C · · IP67 Degree of protection
