IFM 10-30VDC 2/3Wire Inductive Sensor 8mm Sensing Range Ceramic M12/M18 x 1
IFM 10-30VDC 2/3Wire Inductive Sensor 8mm Sensing Range Ceramic M12/M18 x 1
IFM 10-30VDC 2/3Wire Inductive Sensor 8mm Sensing Range Ceramic M12/M18 x 1 - Image 2

IFM 10-30VDC 2/3Wire Inductive Sensor 8mm Sensing Range Ceramic M12/M18 x 1

£102.40 Incl. VAT

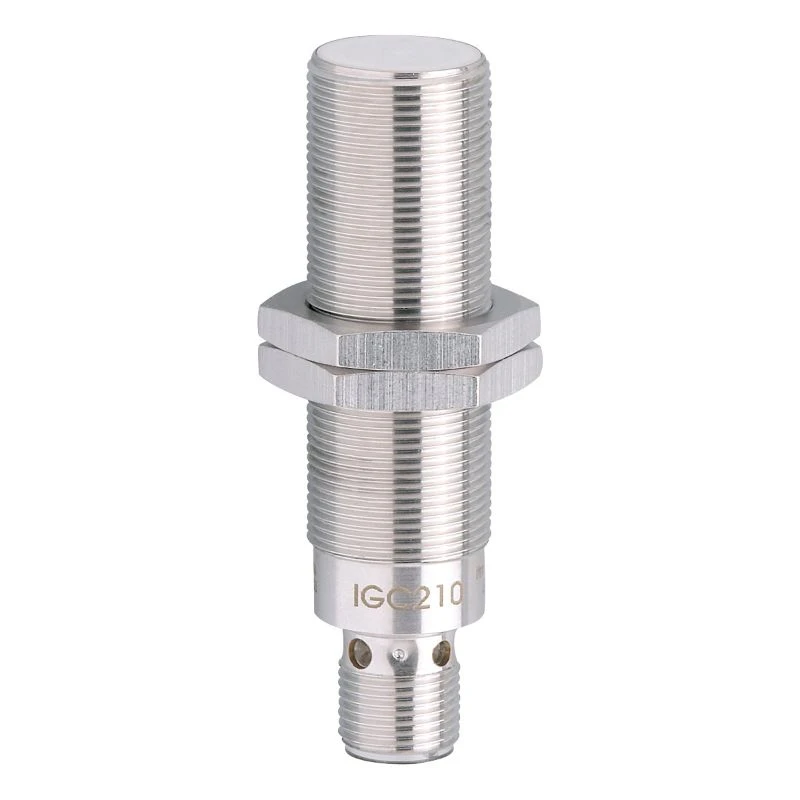

IFM Inductive Sensor (normally open) made up of a white bronze coated M18 brass thread and a M12 electrical connector with gold plated contacts. This sensor also has an active face made up of Ceramics. The electrical design for this sensor is a 3 wire DC PNP (2 wire NPN possible) and the operating voltage is between 10-30V DC. · · · 8mm sensing range (0-6.5mm operating) · · Quick disconnect · · Flush mountable · · Switching frequency: 400Hz · · 1 Red setting aid LED and 1 yellow output status indication LED · · Current Rating: 100mA · · Reverse polarity, short-circuit and overload protection · · Protection class: II · · Ambient temperature: -25 to 70°C · · IP68 Degree of protection

Out of Stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: IGC210 Categories: , , Brand: Product Code: 1050285539

Description

Technical Specifications  Technical Specifications Inductive proximity switch Type of electric connection Connector M12 Voltage type DC Housing material Metal Type of switch function Normally open contact Length of sensor 70 mm Max. output current at protected output 100 mA Switching frequency 400 Hz Diameter sensor 18 mm Supply voltage 10 – 30 V Switching distance 8 mm · Technical Data Sheet – Click to Download
