IFM 10-30VDC PNP Cylinder Sensor 0.3m PUR Cable 10000Hz M12
£63.06 Incl. VAT

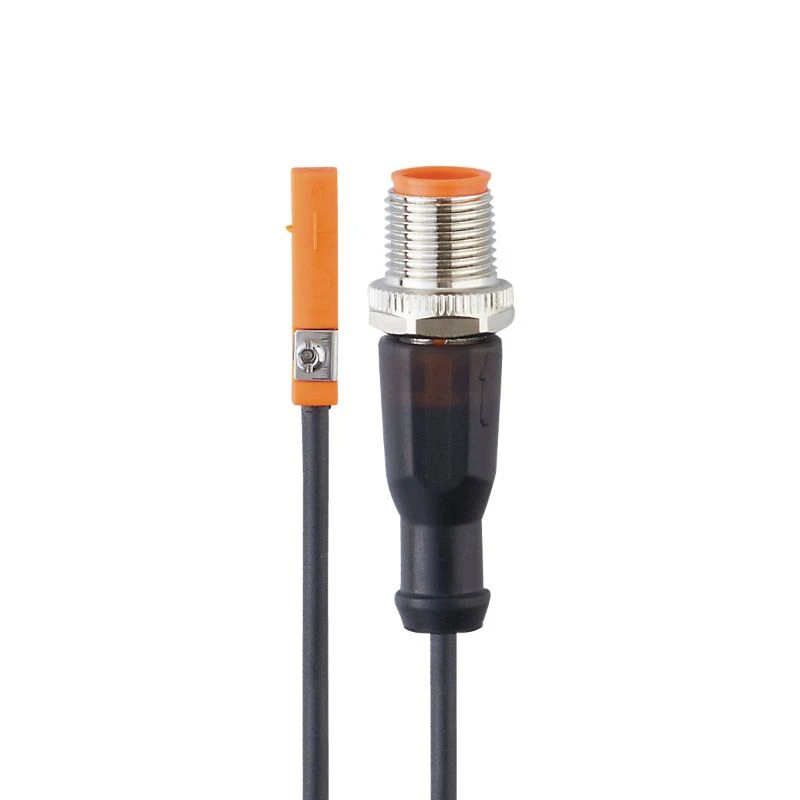

IFM Cylinder sensor (normally open) with GMR cell made up a polyamide (PA) housing and a stainless steel fastening clamp. This sensor has an M12 electrical connector with a turnable coupling ring through a PUR Cable measuring at 0.3m long. The electrical design for this sensor is DC PNP and the operating voltage is between 10-30V DC. · · · Magnetic sensitivity: 2.8mT · · Travel speed > 10m/s · · Flush mountable · · Switching frequency: 10000Hz · · 1 yellow output status indication LED · · Current Rating: 100mA · · Reverse polarity, short-circuit and overload protection · · Protection class: III · · Ambient temperature: -25 to 85°C · · IP65/67 Degree of protection
Out of Stock
Description
Technical Specifications Technical Specifications Magnetic proximity switch Housing material Plastic Construction type housing Cylinder, screw-thread Degree of protection (IP rating) IP67 Type of electric connection Connector M12 Voltage type DC Coating housing Uncoated Type of switching output PNP Type of actuation Magnet Length of sensor 25.3 mm Max. output current at protected output 100 mA Width sensor 5 mm Height of sensor 5.1 mm Ambient temperature 25 – 85 °C Number of semiconductor outputs with signalling function 1 Rated supply voltage at DC 10 – 30 V · Technical Data Sheet – Click to Download
