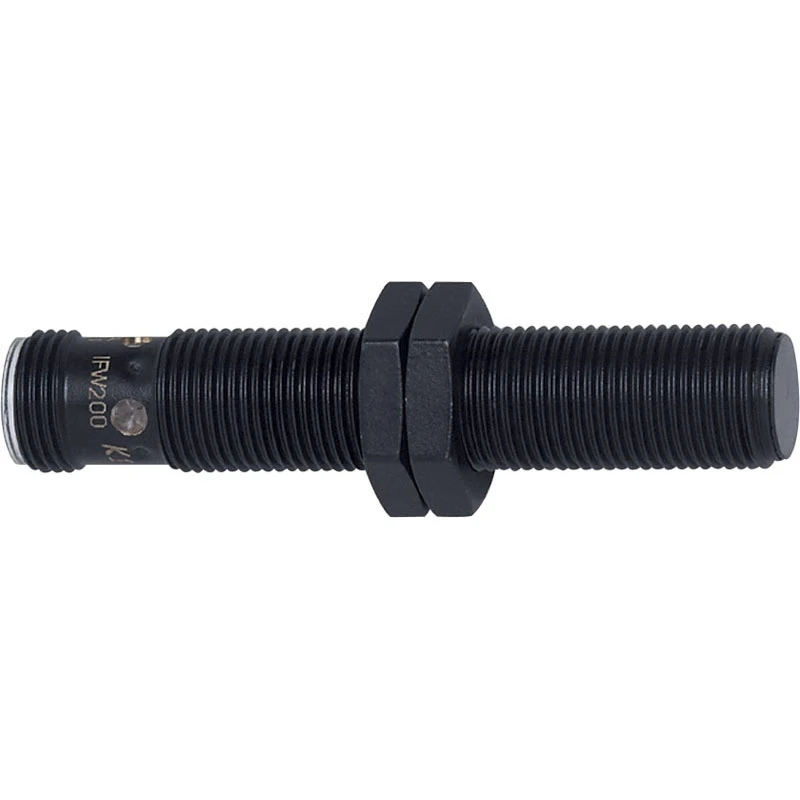

IFM 10-30VDC PNP Inductive Sensor 3mm Sensing Range LCP 2000Hz M12 x 1 Black
£84.86 Incl. VAT
IFM Inductive Sesnor (normally open) made up of a weld coated M12 brass thread and lock nuts with an M12 electrical connector with gold plated contacts; making it weld field immune. This sensor has an active face made up of black liquid-crystal polymer (LCP) with a polyetherimide (PEI) LED window. The electrical design for this sensor is DC PNP and the operating voltage is between 10-30V DC. The correction factor for this sensor = 1. · · · 3mm sensing range (0-2.4mm operating) · · Quick disconnect · · Flush mountable · · Switching frequency: 2000Hz · · 4 x 90° Yellow output status indication LEDs · · Current Rating: 100mA · · Reverse polarity, short-circuit and overload protection · · Protection class: II · · Ambient temperature: -25 to 70°C · · IP67 Degree of protection
Description
Technical Specifications Technical Specifications Inductive proximity switch Type of electric connection Connector M12 Voltage type DC Type of switch function Normally open contact Type of switching output PNP Diameter sensor 12 mm Switching frequency 2000 Hz Length of sensor 65 mm Switching distance 3 mm Supply voltage 10 – 30 V Max. output current at protected output 100 mA · Technical Data Sheet – Click to Download
