IFM 10-30VDC PNP Inductive Sensor 8mm Sensing Range PBT 400Hz M12/M18 x 1
IFM 10-30VDC PNP Inductive Sensor 8mm Sensing Range PBT 400Hz M12/M18 x 1
IFM 10-30VDC PNP Inductive Sensor 8mm Sensing Range PBT 400Hz M12/M18 x 1 - Image 2

IFM 10-30VDC PNP Inductive Sensor 8mm Sensing Range PBT 400Hz M12/M18 x 1

£69.41 Incl. VAT

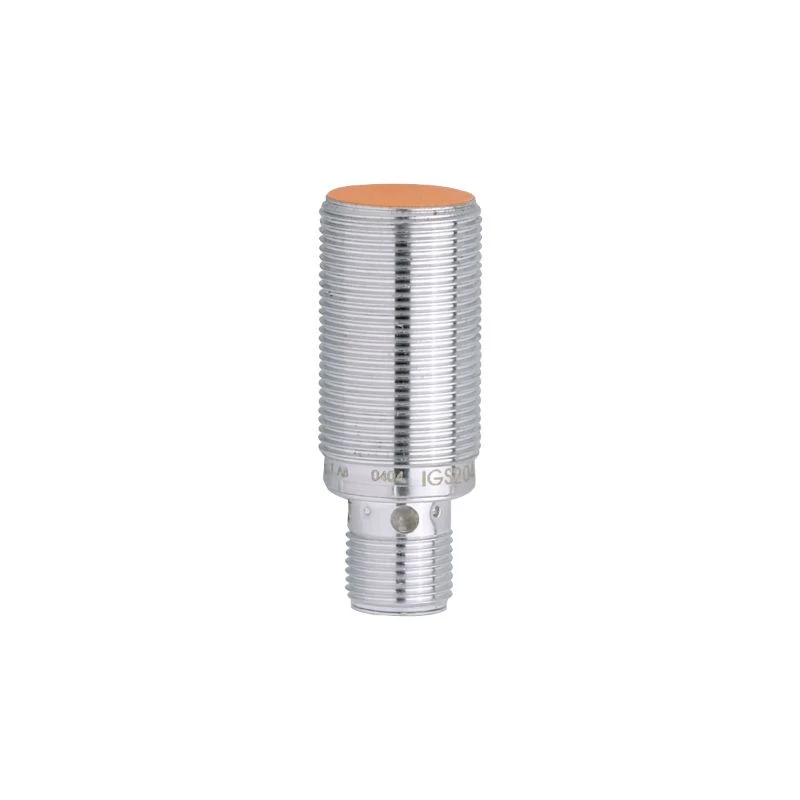

IFM Inductive Sensor (normally open) made up of a white bronze coated M18 brass thread, lock nuts and a M12 electrical connector with gold plated contacts. This sensor also has an active face made up of orange polybutylene terephthalate (PBT) with a polyetherimide (PEI) LED window. The electrical design for this sensor is DC PNP and the operating voltage is between 10-30V DC. · · · 8mm sensing range (0-6.5mm operating) · · Quick disconnect · · Flush mountable · · Switching frequency: 400Hz · · 4 Yellow output status indication LEDs · · Current Rating: 100mA · · Reverse polarity, short-circuit and overload protection · · Protection class: II · · Ambient temperature: -25 to 70°C · · IP67 Degree of protection

Out of Stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: IGS204 Categories: , , , , , Brand: Product Code: 1061032020

Description

Technical Specifications  Technical Specifications Inductive proximity switch Type of electric connection Connector M12 Housing material Metal Voltage type DC Switching distance 8 mm Type of switch function Normally open contact Type of switching output PNP Length of sensor 45 mm Diameter sensor 18 mm Switching frequency 400 Hz Supply voltage 10 – 30 V Max. output current at protected output 100 mA · Technical Data Sheet – Click to Download
