IFM 10-30VDC PNP Normally Open Inductive Sensor 4mm Sensing Range PBT 700Hz M12 x 1
IFM 10-30VDC PNP Normally Open Inductive Sensor 4mm Sensing Range PBT 700Hz M12 x 1
IFM 10-30VDC PNP Normally Open Inductive Sensor 4mm Sensing Range PBT 700Hz M12 x 1 - Image 2

IFM 10-30VDC PNP Normally Open Inductive Sensor 4mm Sensing Range PBT 700Hz M12 x 1

£69.41 Incl. VAT

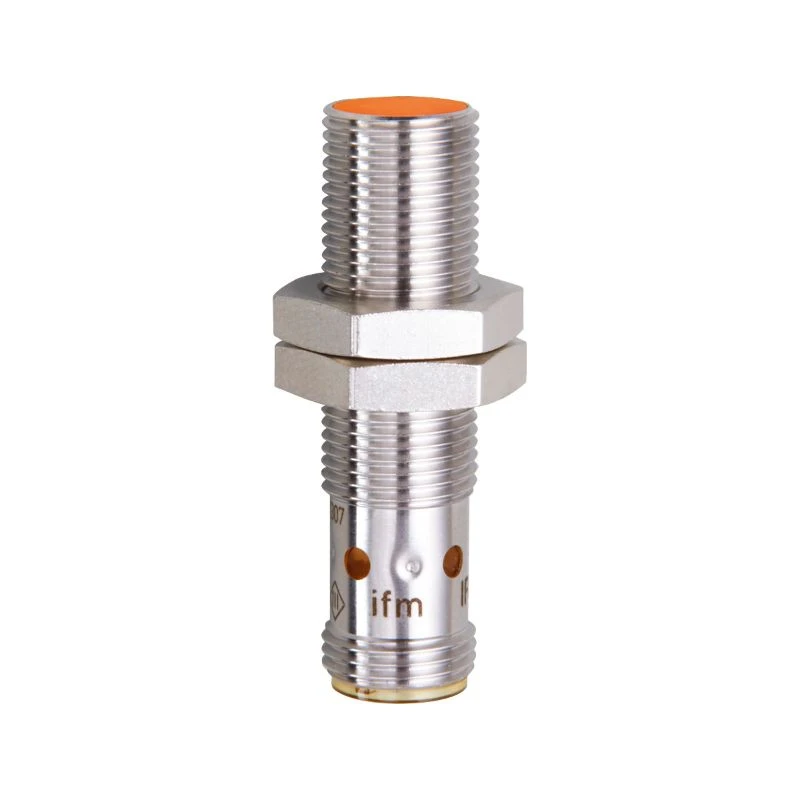

IFM Inductive Sensor (normally open) made up of a white bronze coated M12 brass thread, lock nuts and a M12 electrical connector with gold plated contacts. This sensor also has an active face made up of orange polybutylene terephthalate (PBT) with a polyetherimide (PEI) LED window. The electrical design for this sensor is DC PNP and the operating voltage is between 10-30V DC. · · · 4mm sensing range (0-3.25mm operating) · · Quick disconnect · · Flush mountable · · Switching frequency: 700Hz · · 4 Yellow output status indication LEDs · · Current Rating: 100mA · · Reverse polarity, short-circuit and overload protection · · Protection class: II · · Ambient temperature: -25 to 70°C · · IP67 Degree of protection

Out of Stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: IFS204 Categories: , , Brand: Product Code: 1050159161

Description

Technical Specifications  Technical Specifications Inductive proximity switch Type of electric connection Connector M12 Housing material Metal Voltage type DC Type of switching output PNP Type of switch function Normally open contact Diameter sensor 12 mm Switching frequency 700 Hz Switching distance 4 mm Max. output current at protected output 100 mA Length of sensor 45 mm Supply voltage 10 – 30 V · Technical Data Sheet – Click to Download
