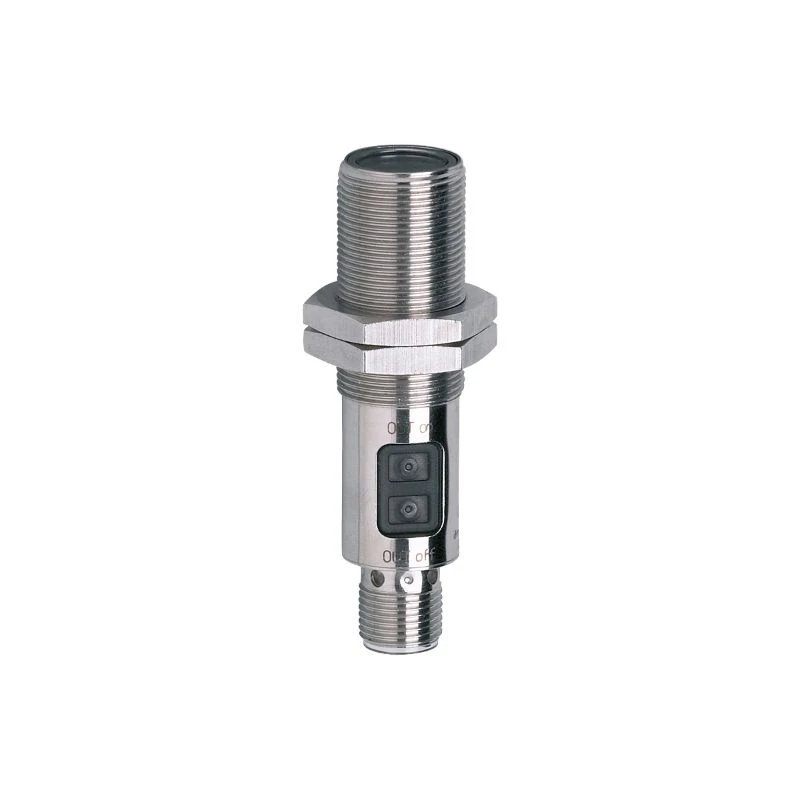

IFM 10-36VDC 0.03-5m Retro-Reflective Sensor Stainless Steel 2000Hz M12/M18 x 1
£168.60 Incl. VAT
IFM Retro-Reflective Sensor (light-on/dark-on; programmable via pushbutton) is an M18 metal thread with an M12 electrical connection made up of stainless steel (316L) with a polyamide (PA) operator interface, thermoplastic polyurethane (TPU) buttons sealed using EPDM rubber. This sensor also has a lens made from PMMA acrylic glass. This sensor has a visible laser light (red light: 624nm) and comes with a polarization filter included. The electrical design for this sensor is DC PNP and the operating voltage is between 10-36V DC. · · · 0.03-5m sensing range (adjustable with Prismatic Reflector) · · Background suppression · · Quick disconnect · · Switching frequency: 2000Hz · · 1 yellow output status indication LED · · Current Rating: 200mA · · Reverse polarity, short-circuit and overload protection · · Protection class: II · · Ambient temperature: -25 to 80°C · · IP67 Degree of protection
Out of Stock
Description
Technical Specifications Technical Specifications Optical distance sensor Material of optical surface Plastic Setting procedure Manual adjustment Degree of protection (IP rating) IP67 Sensing mode Light-/dark switching Type of switch function Programmable/configurable Type of electric connection Connector M12 Construction type housing Cylinder plain Housing material Stainless steel Scanning principle Push button Type of switching output PNP Switching frequency 2000 Hz Maximum output current 200 mA Diameter sensor 18 mm Length of sensor 72 mm Ambient temperature -25 – 80 °C Supply voltage 10 – 36 V Measuring range length 30 – 5000 mm · Technical Data Sheet – Click to Download
