IFM 10-36VDC 0.2-15m Retro-Reflective Sensor Stainless Steel 2000Hz M12/M18 x 1
IFM 10-36VDC 0.2-15m Retro-Reflective Sensor Stainless Steel 2000Hz M12/M18 x 1

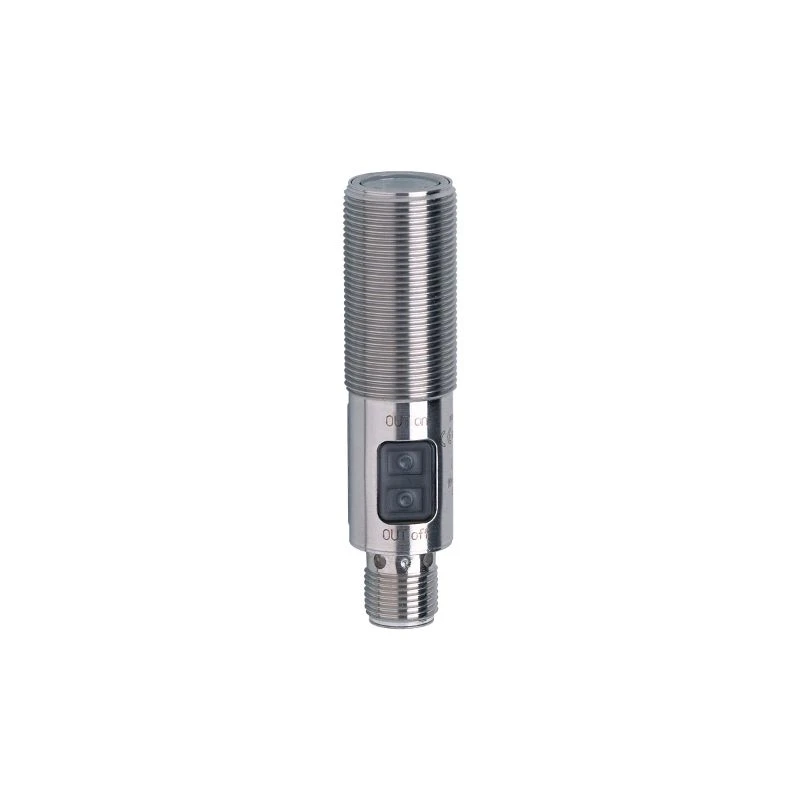

IFM 10-36VDC 0.2-15m Retro-Reflective Sensor Stainless Steel 2000Hz M12/M18 x 1 - Image 2

IFM 10-36VDC 0.2-15m Retro-Reflective Sensor Stainless Steel 2000Hz M12/M18 x 1

£318.05 Incl. VAT

IFM Retro-Reflective Sensor (light-on/dark-on; programmable via pushbutton) is an M18 metal thread with an M12 electrical connection made up of stainless steel (316L) with a polyamide (PA) operator interface, thermoplastic polyurethane (TPU) buttons sealed using EPDM rubber. This sensor also has a lens made from PMMA acrylic glass. With it’s visible laser light (red light: 655nm) this sensor is a Class 1 Laser Product and comes with a polarization filter included. The electrical design for this sensor is DC PNP and the operating voltage is between 10-36V DC. · · · 0.2-15m sensing range (adjustable with Prismatic Reflector) · · Background suppression · · Quick disconnect · · Switching frequency: 2000Hz · · 1 yellow output status indication LED · · Current Rating: 200mA · · Reverse polarity, short-circuit and overload protection · · Protection class: II · · Ambient temperature: -10 to 60°C · · IP65/67 Degree of protection

Out of Stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: OGP700 Categories: , Brand: Product Code: 1061032150

Description

Technical Specifications  Technical Specifications Optical distance sensor Material of optical surface Plastic Setting procedure Manual adjustment Degree of protection (IP rating) IP67 Sensing mode Light-/dark switching Type of electric connection Connector M12 Type of switch function Programmable/configurable Laser protection class Class 1 Construction type housing Cylinder plain Housing material Stainless steel Type of switching output PNP Scanning principle Push button Maximum output current 200 mA Switching frequency 2000 Hz Length of sensor 72 mm Diameter sensor 18 mm Ambient temperature -10 – 60 °C Supply voltage 10 – 36 V Measuring range length 200 – 15000 mm · Technical Data Sheet – Click to Download
