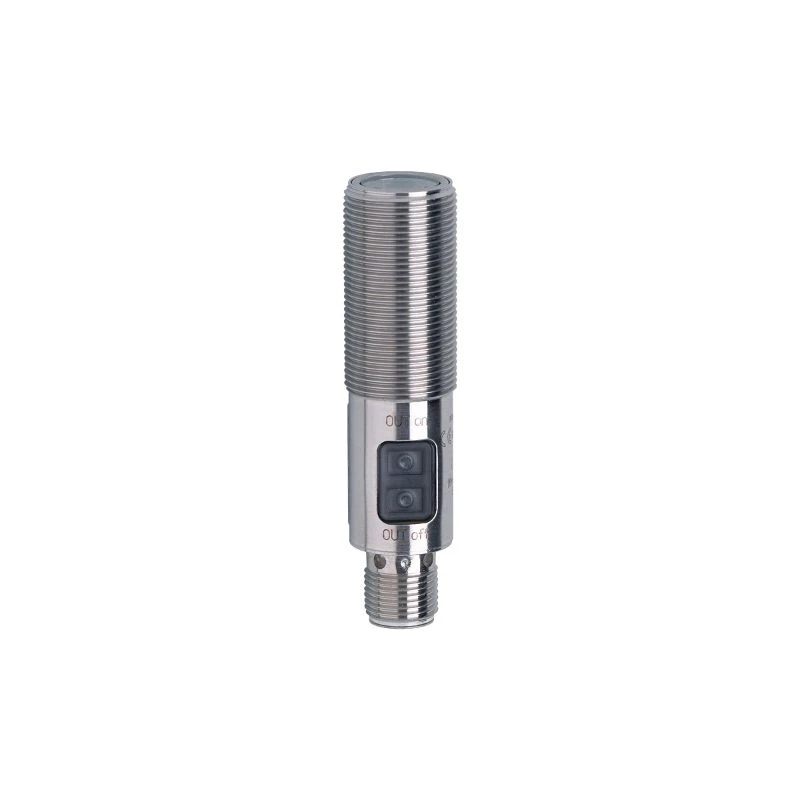

IFM 10-36VDC 20-200mm Diffuse Reflection Sensor Stainless Steel 1000Hz M12/M18 x 1
£320.93 Incl. VAT
IFM Diffuse Reflection Sensor (light-on/dark-on; programmable via pushbutton) is an M18 metal thread with an M12 electrical connection made up of stainless steel (316L), polyamide (PA), liquid-crystal polymer (LCP), thermoplastic polyurethane (TPU) and EPDM rubber. This sensor also has a lens made from PMMA acrylic glass. With it’s visible laser light (red light: 655nm) this sensor is a Class 1 Laser Product, it’s range is adjustable to anywhere between 20-200mm. The electrical design for this sensor is DC PNP and the operating voltage is between 10-36V DC. · · · Background suppression · · Quick disconnect · · Threaded type · · Switching frequency: 1000Hz · · 1 yellow output status indication LED · · Current Rating: 200mA · · Reverse polarity, short-circuit and overload protection · · Protection class: II · · Ambient temperature: -10 to 60°C · · IP65/67 Degree of protection
Description
Technical Specifications Technical Specifications Optical distance sensor Setting procedure Manual adjustment Material of optical surface Plastic Degree of protection (IP rating) IP67 Sensing mode Light-/dark switching Type of electric connection Connector M12 Type of switch function Programmable/configurable Construction type housing Cylinder plain Laser protection class Class 1 Housing material Stainless steel Scanning principle Push button Type of switching output PNP Maximum output current 200 mA Diameter sensor 18 mm Switching frequency 1000 Hz Length of sensor 72 mm Ambient temperature -10 – 60 °C Supply voltage 10 – 36 V Measuring range length 20000 – 200000 mm · Technical Data Sheet – Click to Download
