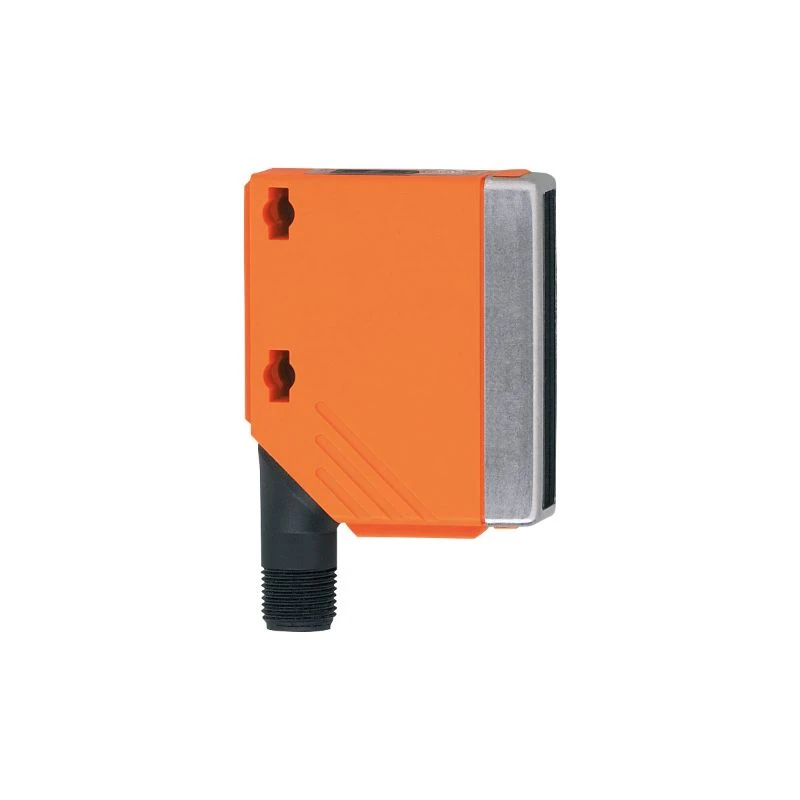

IFM 10-36VDC 50-1800mm Diffuse Reflection Sensor PA 1000Hz M12
£245.94 Incl. VAT
IFM Rectangular Diffuse Reflection Sensor (light-on/dark-on; programmable via pushbutton) made up of a polyamide (PA) housing with a high grade stainless steel front framework and thermoplastic polyurethane (TPU) operator interface. This sensor also has a lens made from PMMA acrylic glass. This sensor has a visible laser light (red light: 624nm) and it’s sensing range is adjustable to anywhere between 50-1800mm. This sensor also has an M12 electrical connection where the electrical design is DC PNP and the operating voltage is between 10-36V DC. · · · Background suppression · · Teach function and electrical lock included · · Quick disconnect · · Switching frequency: 1000Hz · · 1 yellow output status indication LED · · Current Rating: 200mA · · Reverse polarity, short-circuit and overload protection · · Protection class: II · · Ambient temperature: -25 to 60°C · · IP67 Degree of protection
Description
Technical Specifications Technical Specifications Optical distance sensor Housing material Plastic Material of optical surface Plastic Sensing mode Light-/dark switching Degree of protection (IP rating) IP67 Construction type housing Special construction Type of electric connection Connector M12 Scanning principle Reflection system Setting procedure Teach-In Type of switch function Programmable/configurable Height of sensor 56 mm Type of switching output PNP Length of sensor 46.8 mm Width sensor 18.2 mm Maximum output current 200 mA Switching frequency 1000 Hz Ambient temperature -25 – 60 °C Supply voltage 10 – 36 V Measuring range length 50 – 1800 mm · Technical Data Sheet – Click to Download
