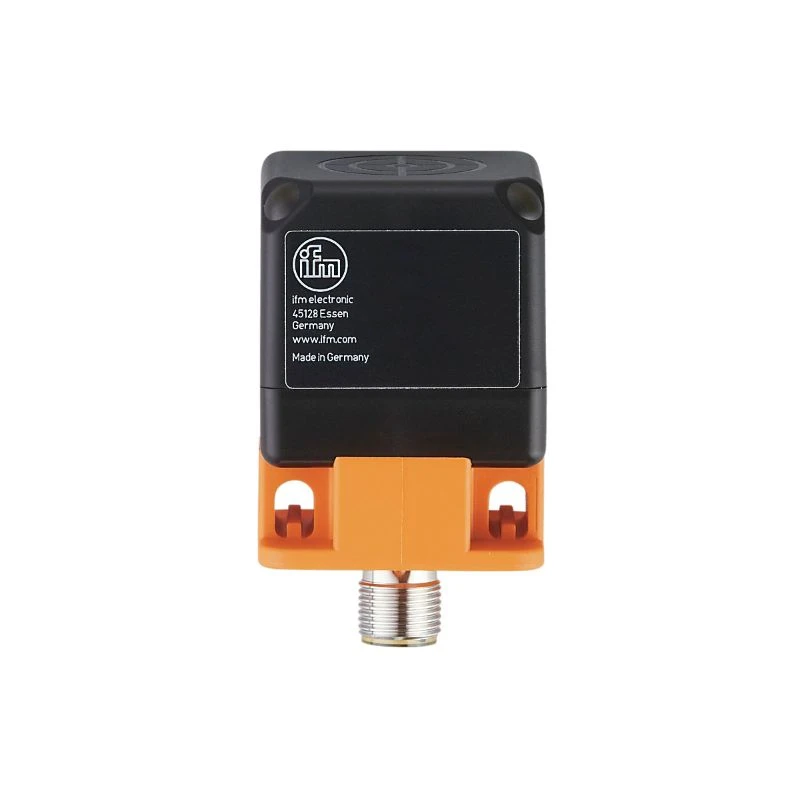

IFM 10-36VDC PNP 5 Position Inductive Sensor 20mm Sensing Range 100Hz M12 Plastic
IFM 10-36VDC PNP 5 Position Inductive Sensor 20mm Sensing Range 100Hz M12 Plastic
IFM 10-36VDC PNP 5 Position Inductive Sensor 20mm Sensing Range 100Hz M12 Plastic - Image 2

IFM 10-36VDC PNP 5 Position Inductive Sensor 20mm Sensing Range 100Hz M12 Plastic

£76.45 Incl. VAT

IFM Plastic Rectangular Inductive Sensor (normally open) made up of a black and orange polyamide (PA) housing material. The sensor also has an M12 electrical connector which is rotatable and has gold plated contacts. The electrical design for this sensor is DC PNP and the operating voltage is between 10-36V DC. · · · 20mm sensing range (0-16.2mm operating) · · Quick disconnect · · Flush mountable · · Switching frequency: 100Hz · · 1 Green power LED and 1 yellow output status indication LED · · Current Rating: 200mA · · Reverse polarity, short-circuit and overload protection · · Protection class: II · · Ambient temperature: -25 to 70°C · · IP67 Degree of protection

Out of Stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: IM5115 Categories: , , Brand: Product Code: 1061032053

Description

Technical Specifications  Technical Specifications Inductive proximity switch Housing material Plastic Type of electric connection Connector M12 Voltage type DC Type of switch function Normally open contact Type of switching output PNP Switching distance 20 mm Max. output current at protected output 200 mA Switching frequency 100 Hz Width sensor 40 mm Length of sensor 66 mm Height of sensor 40 mm Supply voltage 10 – 36 V · Technical Data Sheet – Click to Download
