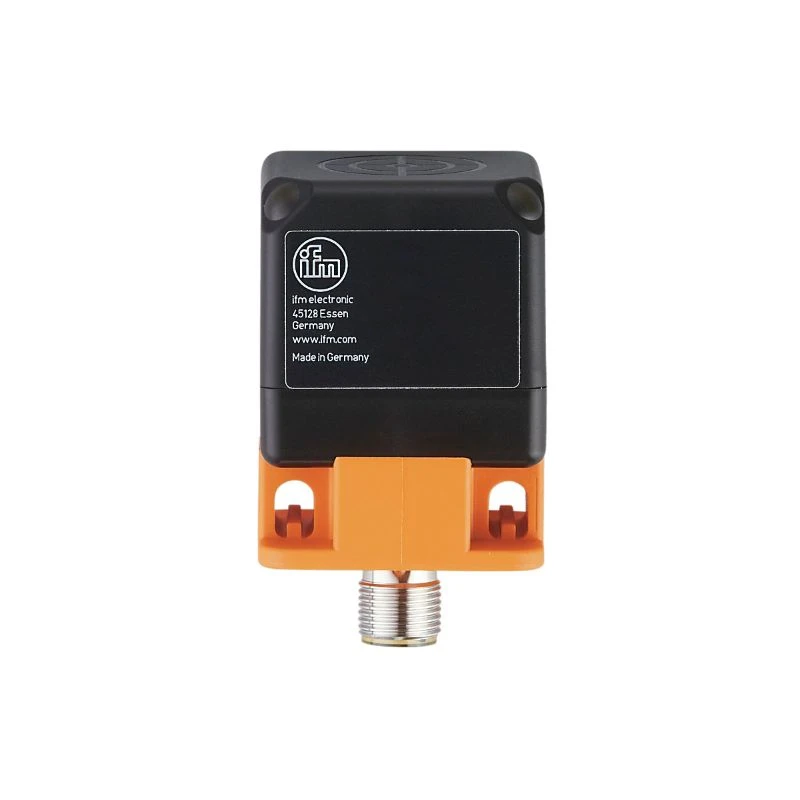

IFM 10-36VDC PNP 5 Position Inductive Sensor 20mm Sensing Range 200Hz M12 Plastic
IFM 10-36VDC PNP 5 Position Inductive Sensor 20mm Sensing Range 200Hz M12 Plastic
IFM 10-36VDC PNP 5 Position Inductive Sensor 20mm Sensing Range 200Hz M12 Plastic - Image 2

IFM 10-36VDC PNP 5 Position Inductive Sensor 20mm Sensing Range 200Hz M12 Plastic

£78.66 Incl. VAT

IFM Plastic Rectangular Inductive Sensor (complementary output function) made up of a black and orange polyamide (PA) housing material; all of which is weld field immune. The sensor also has a rotatable, locking high grade stainless steel M12 electrical connector. The electrical design for this sensor is DC PNP and the operating voltage is between 10-36V DC. The correction factor for this sensor = 1. · · · 20mm sensing range (0-16.2mm operating) · · Quick disconnect · · Flush mountable · · Switching frequency: 200Hz · · 1 Green power LED and 1 yellow output status indication LED · · Current Rating: 200mA · · Reverse polarity, short-circuit and overload protection · · Protection class: II · · Ambient temperature: -25 to 70°C · · IP67 Degree of protection

Out of Stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: IM5132 Categories: , , Brand: Product Code: 1061032060

Description

Technical Specifications  Technical Specifications Inductive proximity switch Housing material Plastic Type of electric connection Connector M12 Voltage type DC Type of switch function Normally open contact Type of switching output PNP Switching distance 20 mm Switching frequency 200 Hz Width sensor 40 mm Height of sensor 40 mm Length of sensor 66 mm Max. output current at protected output 200 mA Supply voltage 10 – 36 V · Technical Data Sheet – Click to Download
