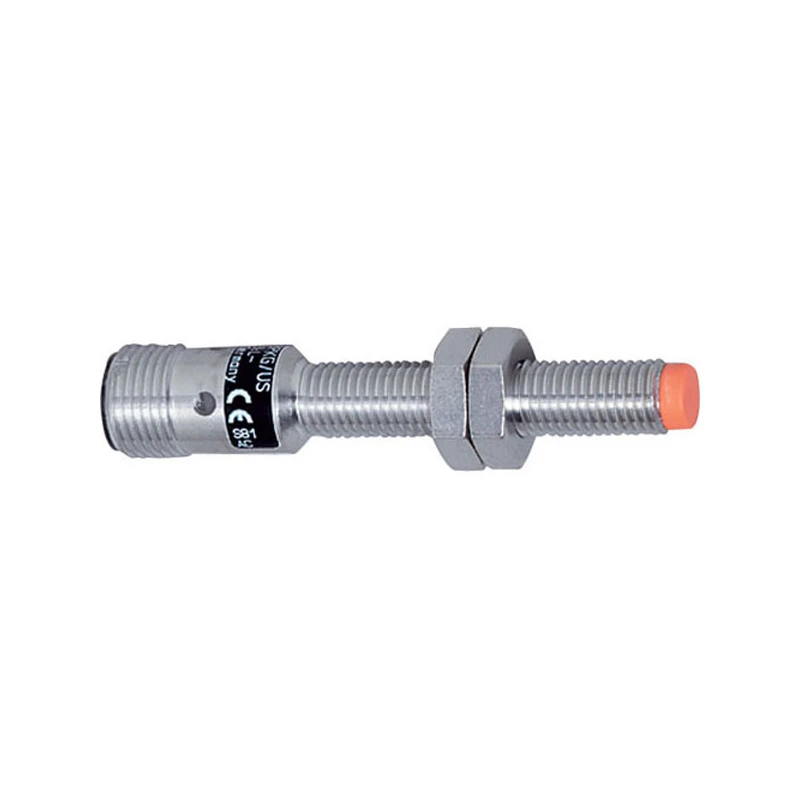

IFM 10-36VDC PNP Inductive Sensor 4mm Sensing Range CO-PC 300Hz M8 x 1/M12
£95.70 Incl. VAT
IFM Inductive Sensor (normally open) made up of a white bronze coated M8 brass thread with an M12 electrical connector. This sensor also has an active face made up of CO-PC. The electrical design for this sensor is DC PNP and the operating voltage is between 10-36V DC. · · · 4mm sensing range (0-3.25mm operating) · · Quick disconnect · · Non-flush mountable · · Switching frequency: 300Hz · · 4 x 90° Yellow output status indication LEDs · · Current Rating: 200mA · · Reverse polarity, short-circuit and overload protection · · Protection class: III · · Ambient temperature: -25 to 70°C · · IP67 Degree of protection
Description
Technical Specifications Technical Specifications Inductive proximity switch Type of electric connection Connector M12 Voltage type DC Type of switch function Normally open contact Type of switching output PNP Diameter sensor 8 mm Length of sensor 62 mm Switching distance 4 mm Switching frequency 300 Hz Supply voltage 10 – 36 V Max. output current at protected output 200 mA · Technical Data Sheet – Click to Download
