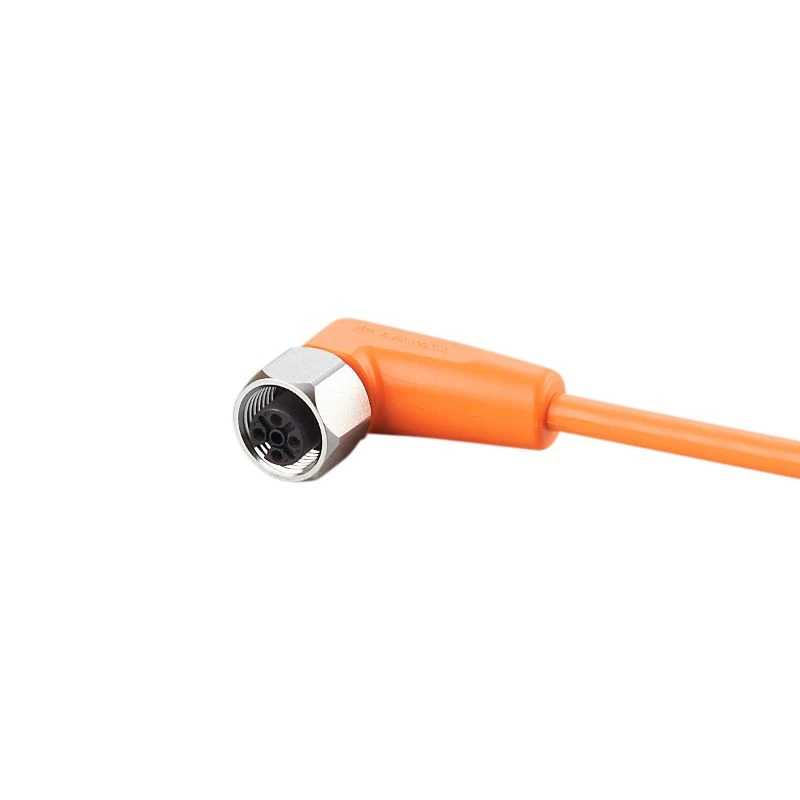

IFM 250VAC/300VDC Angled Socket M12 PVC 25m Stainless Steel Orange
IFM 250VAC/300VDC Angled Socket M12 PVC 25m Stainless Steel Orange
IFM 250VAC/300VDC Angled Socket M12 PVC 25m Stainless Steel Orange - Image 2

IFM 250VAC/300VDC Angled Socket M12 PVC 25m Stainless Steel Orange

£52.16 Incl. VAT

IFM straight socket made up of an orange PVC housing sealed using EPDM rubber with a stainless steel (Grade 316L) nut. It has an M12 connector and has an operating voltage of 250V AC/300V DC. · · · Applicable for hygenic and weat areas in the food industry · · 4 holed connection · · Free from silicone · · Gold plated contacts · · 25m orange PVC cable connection (4 x 0.34mm²) · · Tightening torque for knurled nut: 0.6-1.5Nm · · Electrical current rating: 4A (cULus: 3A) · · Protection class: II · · Ambient temperature: -25 to 100°C (cULus: max. 50 °C) · · IP65/67/68/69K Degree of protection

Out of Stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: EVT006 Categories: , Brand: Product Code: 1061031900

Description

Technical Specifications  Technical Specifications Sensor-actuator patch cord Material of contact surface Au Type of plug-in contact, field sided Female (bus) Type of electrical connection, box-sided Free conductor end Material of cable sheath Polyvinyl chloride (PVC) Degree of protection (IP rating) IP69K Type of electrical connection, field-sided M12 Positioning cable feed, field-sided Angled Colour cable sheath Orange Cable length 25 m Rated voltage 250 V Rated current In 4 A Number of poles 4
