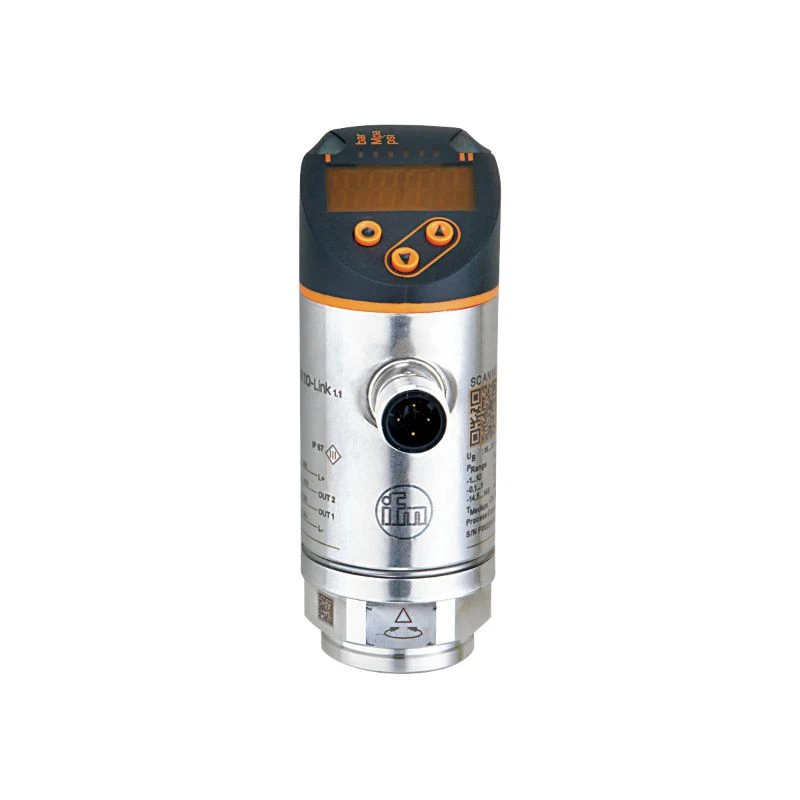

IFM Pressure Monitor Electronic Pnp Npn Connector

IFM Electronic Pressure Monitor (2x normally open/closed programmable outputs) made up of a stainless steel (316L), polycarboante (PC & PC-GF 30) and polybutylene terephthalate (PBT-GF 20 & 30) housing. This monitor has a ceramic-capacitive pressure cell used for measuring. This monitor also has an M12 electrical connection where the electrical design is DC PNP and the operating voltage is between 18-30V DC. · · · Function programmable with 4-digit alphanumeric display · · Meauring range (bar/psi/MPa): 0-100/ 0-1450/ 0-10 · · Pressure Rating: 300 bar/ 4350 psi/ 30 MPa · · Switching frequency: = 170Hz · · 3 Green display unit and 2 yellow switching status LEDs (Alternating red and green indicators) · · Current Rating: 150/ 200 (…60 °C)/ 250mA (…40 °C) · · Reverse polarity, short-circuit and overload protection · · Protection class: III · · Ambient temperature: -25 to 80°C · · IP65/67 Degree of protection
