IFM Vdoah050Mss00 3H05Stgh050Mss

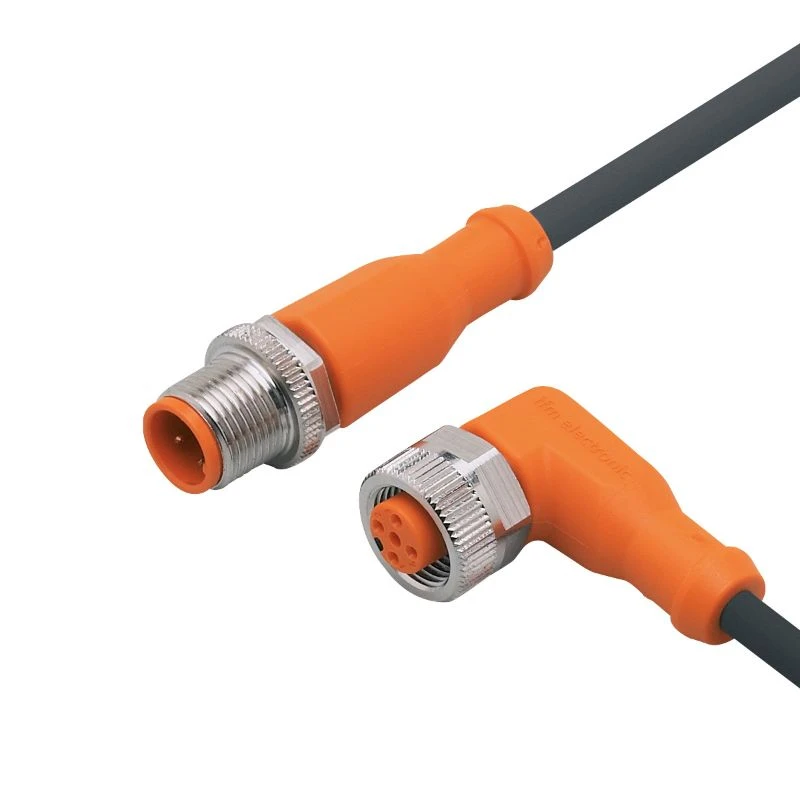

IFM straight-angled patchcord made up of an orange thermoplastic polyurethane (TPU) housing sealed using viton rubber with a nickel plated brass nut. It has 1 M12 plug and 1 M12 socket and has an operating voltage of 60V AC/60V DC. · · · 5 holed connection · · Free from silicone · · Free from halogen · · Gold plated contacts · · 0.3m black PUR cable connection (5 x 0.34 mm²) · · Tightening torque for knurled nut: 0.6-1.5Nm · · Electrical current rating: 4A (cULus: 3A) · · Protection class: II · · Ambient temperature: -25 to 90°C (cULus: max. 75 °C) · · IP65/67/68/69K Degree of protection
