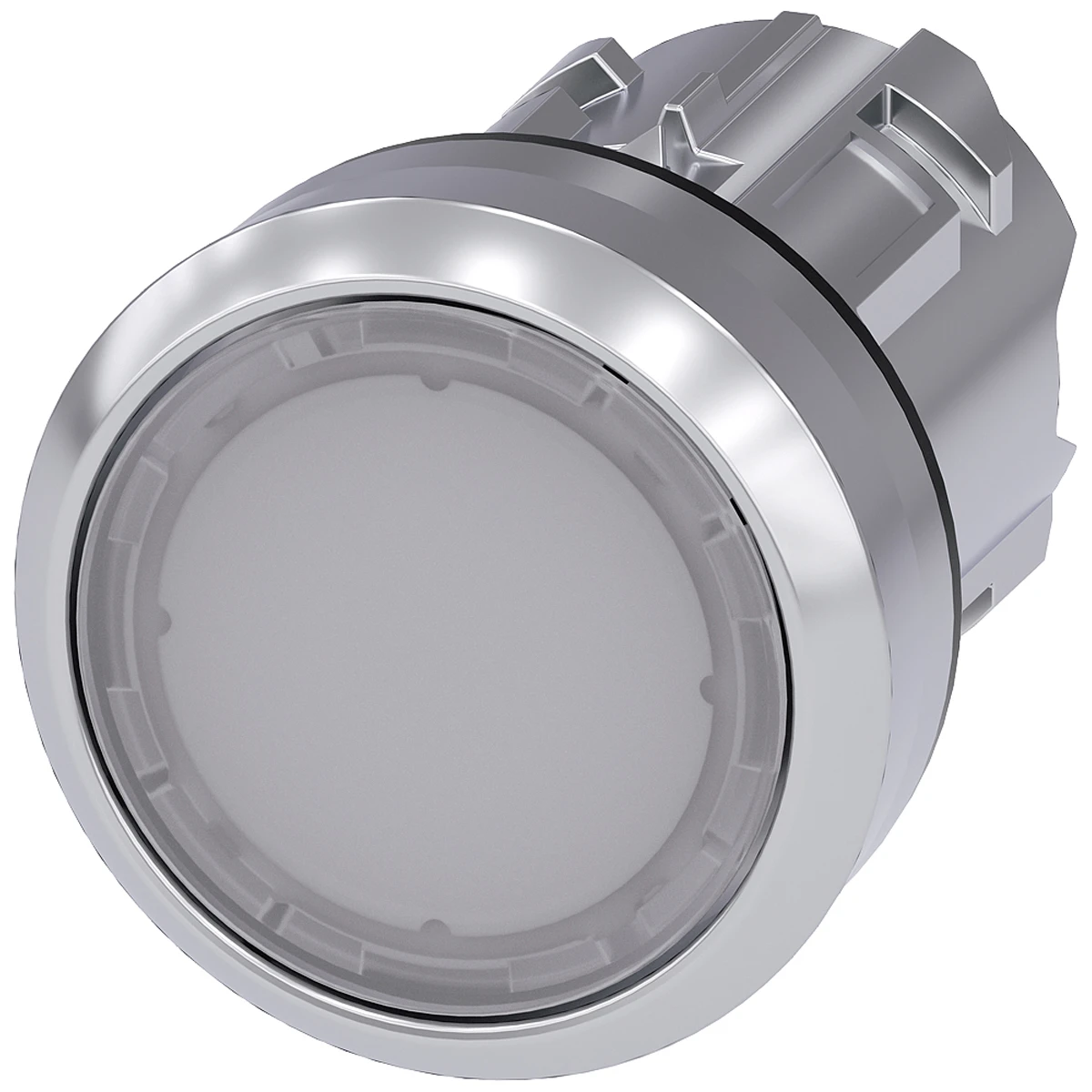

Siemens Illuminated Push Button 22mm Round Metal
£8.82 Incl. VAT
Siemens standard round illuminated pushbutton made up of a plastic actuator surrounded by a high gloss silver colour metal ring. The mounting diameter is 22.3mm whereas the actuating element has a 29.5mm diameter. · · · Manner of function: Momentary · · Type of unlocking device: None · · Mechanical sevice life: 3000000 cycles · · Maximum operating frequency: 3600 1/h · · IP66/67/69 Degree of protection · · Vibration resistance: 5g (10-500Hz) · · Shock resistance: 50g · · Ambient temperature: -25 to 70°C
Description
Technical Specifications Technical Specifications Front element for push button Colour button White Construction type lens Round Material front ring Metal Type of button Flat Colour front ring Chrome Height opening 11 mm Number of command positions 1 Width opening 29.5 mm Hole diameter 22.3 mm With protective cover No Spring-return No Suitable for illumination Yes Switching function latching No With front ring Yes Labelled No · Technical Data Sheet – Click to Download
