Illuminated Push Button 22mm Round Plastic
Illuminated Push Button 22mm Round Plastic
Illuminated Push Button 22mm Round Plastic - Image 2
Illuminated Push Button 22mm Round Plastic - Image 3

Illuminated Push Button 22mm Round Plastic

£7.62 Incl. VAT

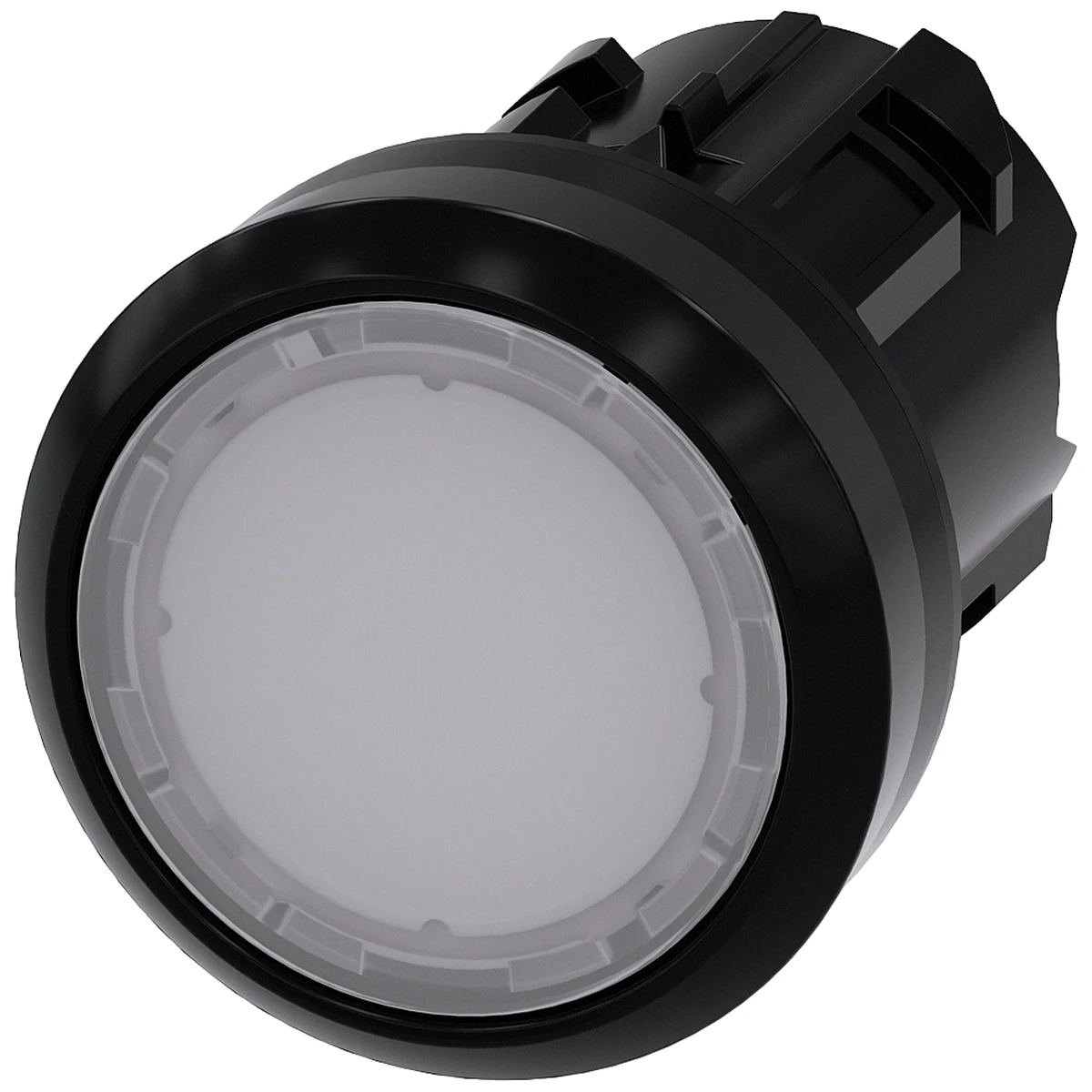

Siemens standard round illuminated pushbutton made up of a plastic actuator surrounded by a black plastic ring. The mounting diameter is 22.3mm whereas the actuating element has a 29.5mm diameter. · · · Manner of function: Momentary · · Type of unlocking device: None · · Mechanical sevice life: 3000000 cycles · · Maximum operating frequency: 3600 1/h · · IP66/67/69 Degree of protection · · Vibration resistance: 5g (10-500Hz) · · Shock resistance: 50g · · Ambient temperature: -25 to 70°C

Out of stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 3SU1001-0AB60-0AA0 Categories: , , Brand: Part Number: 1051118251

Description

Technical Specifications  Technical Specifications Front element for push button Material front ring Plastic Colour front ring Black Construction type lens Round Colour button White Type of button Flat Number of command positions 1 Hole diameter 22.3 mm Width opening 29.5 mm Height opening 11 mm Spring-return No With protection cover No Labelled No Suitable for illumination Yes Switching function latching No With protective cover No With front ring Yes · Technical Data Sheet – Click to Download
