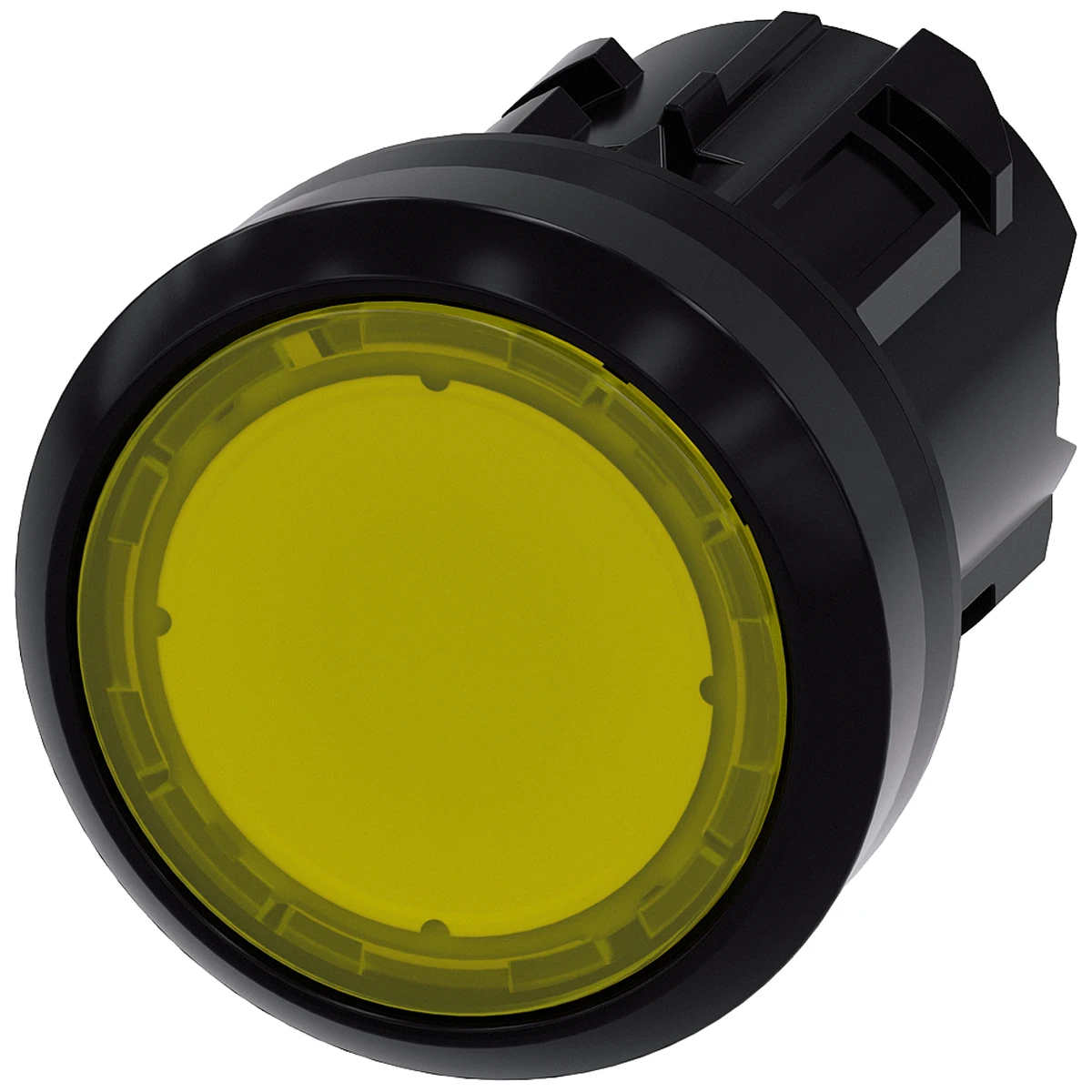

Illuminated Push Button 22mm Round Plastic
Illuminated Push Button 22mm Round Plastic
Illuminated Push Button 22mm Round Plastic - Image 2
Illuminated Push Button 22mm Round Plastic - Image 3

Illuminated Push Button 22mm Round Plastic

£7.62 Incl. VAT

Siemens standard round illuminated pushbutton made up of a plastic actuator surrounded by a black plastic ring. The mounting diameter is 22.3mm whereas the actuating element has a 29.5mm diameter. · · · Manner of function: Momentary · · Type of unlocking device: None · · Mechanical sevice life: 3000000 cycles · · Maximum operating frequency: 3600 1/h · · IP66/67/69 Degree of protection · · Vibration resistance: 5g (10-500Hz) · · Shock resistance: 50g · · Ambient temperature: -25 to 70°C

Out of stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 3SU1001-0AB30-0AA0 Categories: , , Brand: Part Number: 1051118248

Description

Technical Specifications  Technical Specifications Front element for push button Material front ring Plastic Colour front ring Black Construction type lens Round Type of button Flat Hole diameter 22.3 mm Number of command positions 1 Height opening 11 mm Width opening 29.5 mm Colour button Yellow With protection cover No Labelled No Spring-return No Switching function latching No With front ring Yes With protective cover No Suitable for illumination Yes · Technical Data Sheet – Click to Download
