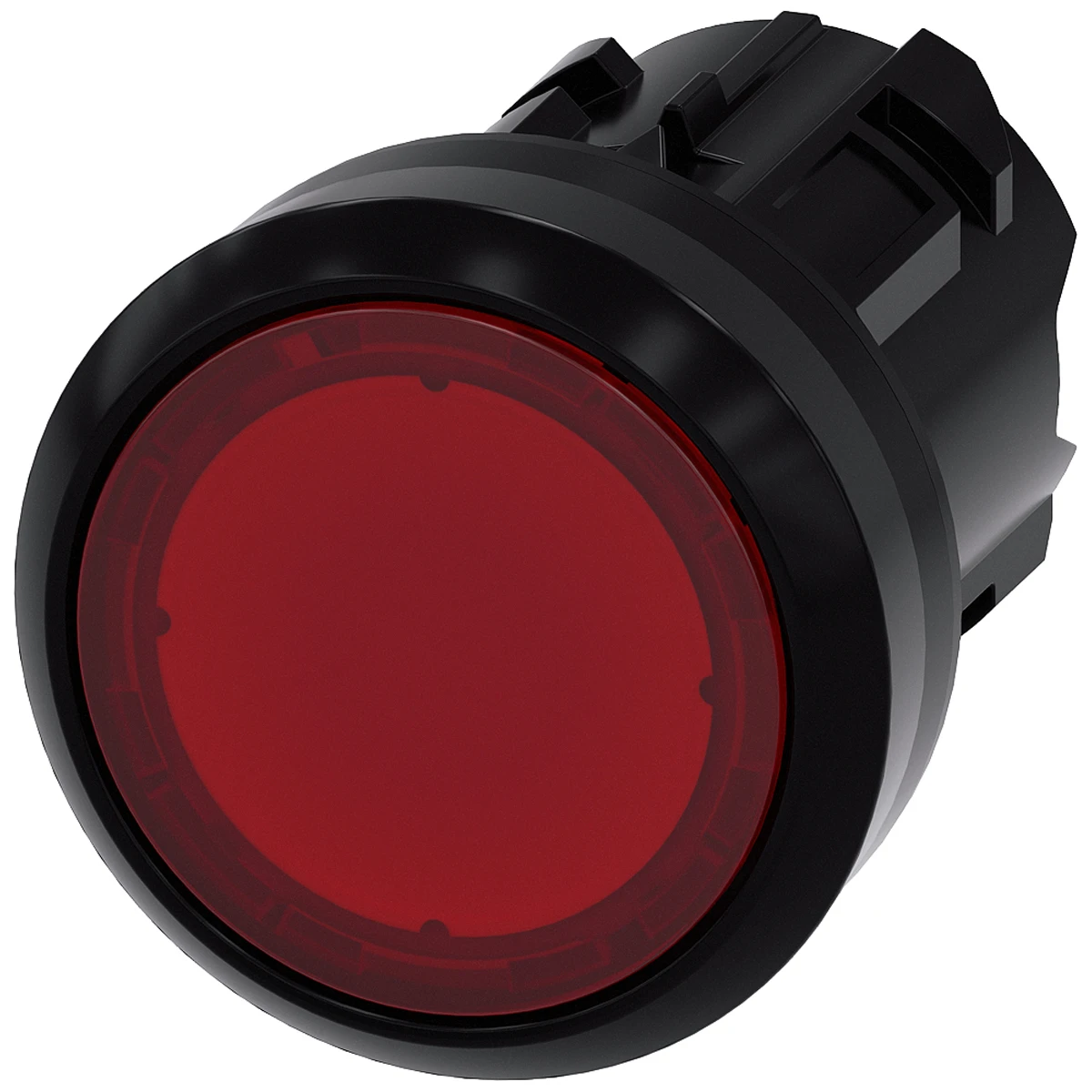

Siemens Illuminated Push Button 22mm Round Plastic
Siemens Illuminated Push Button 22mm Round Plastic
Siemens Illuminated Push Button 22mm Round Plastic - Image 2
Siemens Illuminated Push Button 22mm Round Plastic - Image 3

Siemens Illuminated Push Button 22mm Round Plastic

£7.81 Incl. VAT

Siemens standard round illuminated pushbutton made up of a plastic actuator surrounded by a black plastic ring. The mounting diameter is 22.3mm whereas the actuating element has a 29.5mm diameter. · · · Manner of function: Momentary · · Type of unlocking device: None · · Mechanical sevice life: 3000000 cycles · · Maximum operating frequency: 3600 1/h · · IP66/67/69 Degree of protection · · Vibration resistance: 5g (10-500Hz) · · Shock resistance: 50g · · Ambient temperature: -25 to 70°C

Typically available in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 3SU1001-0AB20-0AA0 Categories: , , , Brand: Product Code: 1051118247

Description

Technical Specifications  Technical Specifications Front element for push button Material front ring Plastic Construction type lens Round Colour front ring Black Colour button Red Type of button Flat Number of command positions 1 Width opening 29.5 mm Height opening 11 mm With protective cover No Hole diameter 22.3 mm Labelled No Switching function latching No With front ring Yes Suitable for illumination Yes Spring-return No · Technical Data Sheet – Click to Download
