Siemens Illuminated Push Button 22mm Round Plastic
Siemens Illuminated Push Button 22mm Round Plastic
Siemens Illuminated Push Button 22mm Round Plastic - Image 2
Siemens Illuminated Push Button 22mm Round Plastic - Image 3

Siemens Illuminated Push Button 22mm Round Plastic

£7.81 Incl. VAT

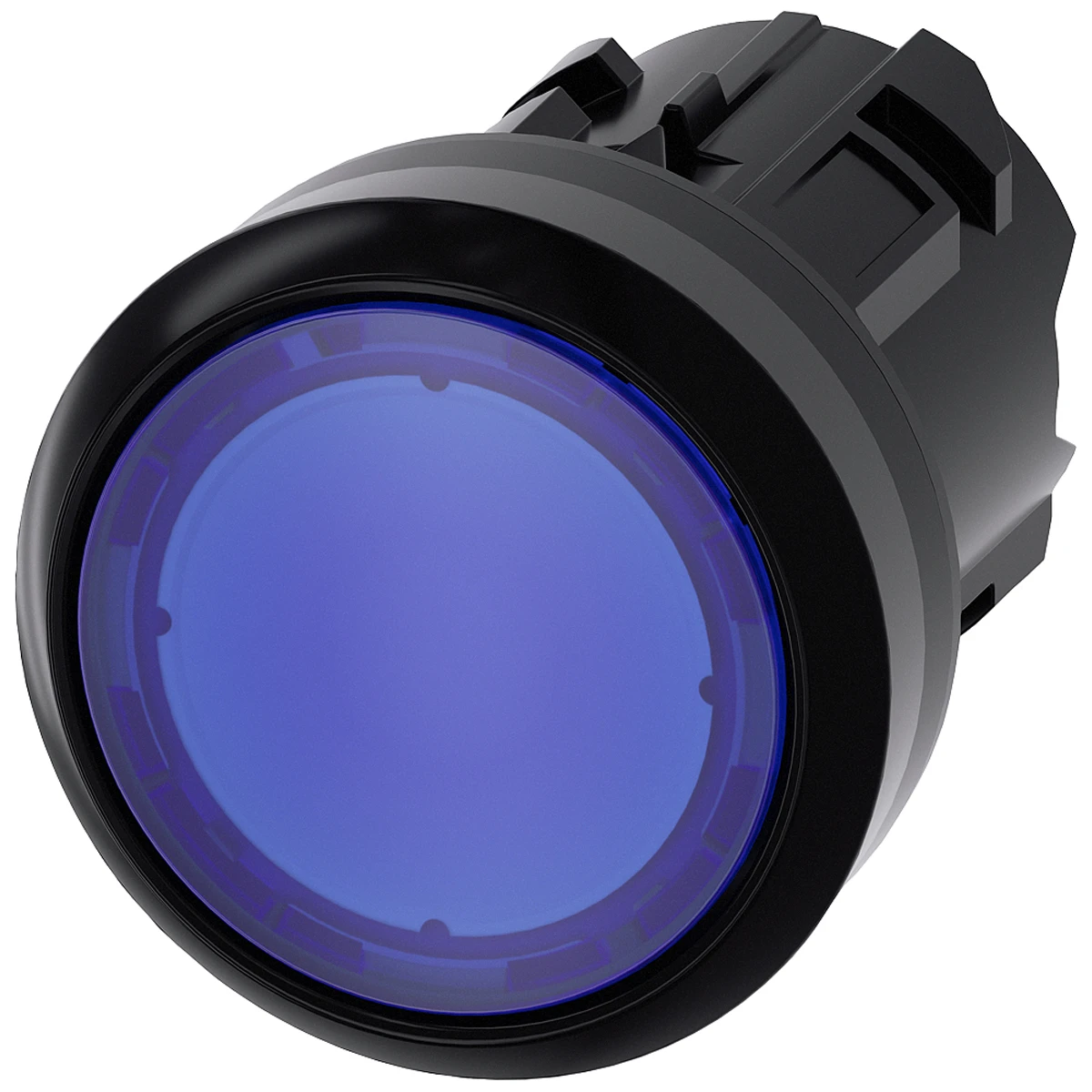

Siemens standard round illuminated pushbutton made up of a plastic actuator surrounded by a black plastic ring. The mounting diameter is 22.3mm whereas the actuating element has a 29.5mm diameter. · · · Manner of function: Momentary · · Type of unlocking device: None · · Mechanical sevice life: 3000000 cycles · · Maximum operating frequency: 3600 1/h · · IP66/67/69 Degree of protection · · Vibration resistance: 5g (10-500Hz) · · Shock resistance: 50g · · Ambient temperature: -25 to 70°C

Typically available in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 3SU1001-0AB50-0AA0 Brand: Product Code: 1051118250

Description

Technical Specifications  Technical Specifications Front element for push button Material front ring Plastic Construction type lens Round Colour button Blue Colour front ring Black Type of button Flat Hole diameter 22.3 mm Number of command positions 1 Height opening 11 mm Width opening 29.5 mm Spring-return No Suitable for illumination Yes With protective cover No With front ring Yes Switching function latching No Labelled No · Technical Data Sheet – Click to Download
