Schneider Electric Incomer KQ Four Pole Switch Disconnector 250A 1650 x 1400 x 1750mm
Schneider Electric Incomer KQ Four Pole Switch Disconnector 250A 1650 x 1400 x 1750mm
Schneider Electric Incomer KQ Four Pole Switch Disconnector 250A 1650 x 1400 x 1750mm - Image 2
Schneider Electric Incomer KQ Four Pole Switch Disconnector 250A 1650 x 1400 x 1750mm - Image 3

Schneider Electric Incomer KQ Four Pole Switch Disconnector 250A 1650 x 1400 x 1750mm

£704.99 Incl. VAT

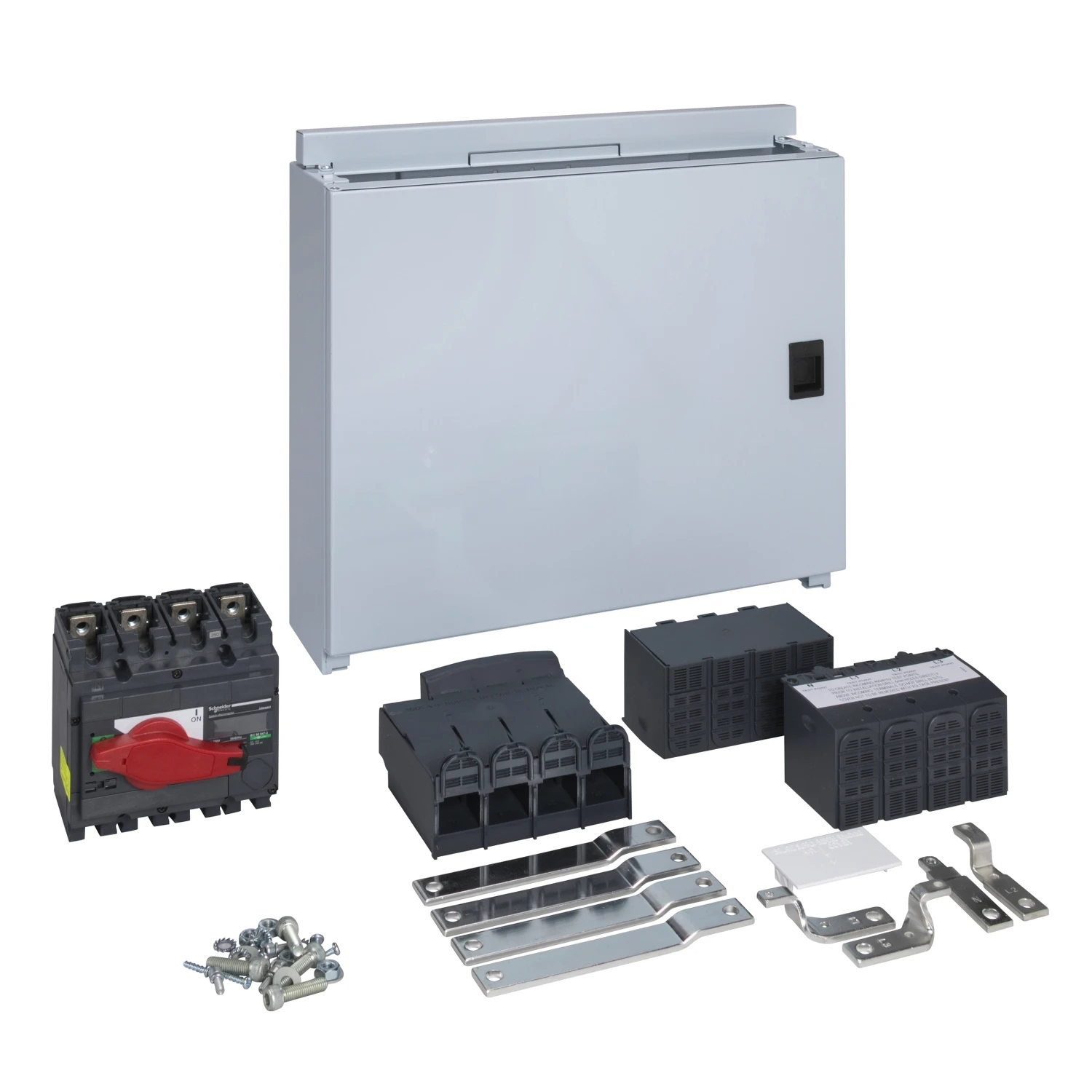

The Schneider LoadCentre KQ SE250SW4 is a 4 pole 250 amp main incoming switch disconnector designed to fit any LoadCentre KQ distribution type B boards, fitted in a supplied 400mm extension box. · · · Compatible with Loadcentre KQ B Type boards · · Other switch disconnector options available · · BS EN 60947-3 · · Suitable cable cross section, 185mm · · RoHS Compliant

✓ In stock – Delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: SE250SW4 Categories: , , Brand: Product Code: 2500579856

Description

Technical Specifications  Technical Specifications Switch disconnector / isolator Number of auxiliary contacts as normally closed contact 0 Number of poles 4 Rated permanent current Iu 250 A Number of auxiliary contacts as normally open contact 0 Number of switches 1 Number of auxiliary contacts as change-over contact 0 Max. rated operation voltage Ue AC 455 V Rated operating voltage 415 – 415 V Motor drive integrated No Suitable for front mounting 4-hole No Version as maintenance-/service switch No Version as main switch Yes Version as safety switch No Version as emergency stop installation No Suitable for front mounting centre No Version as reversing switch No Motor drive optional No Voltage release optional No Interlockable No Suitable for distribution board installation Yes Suitable for intermediate mounting No · Technical Data Sheet – Click to Download
