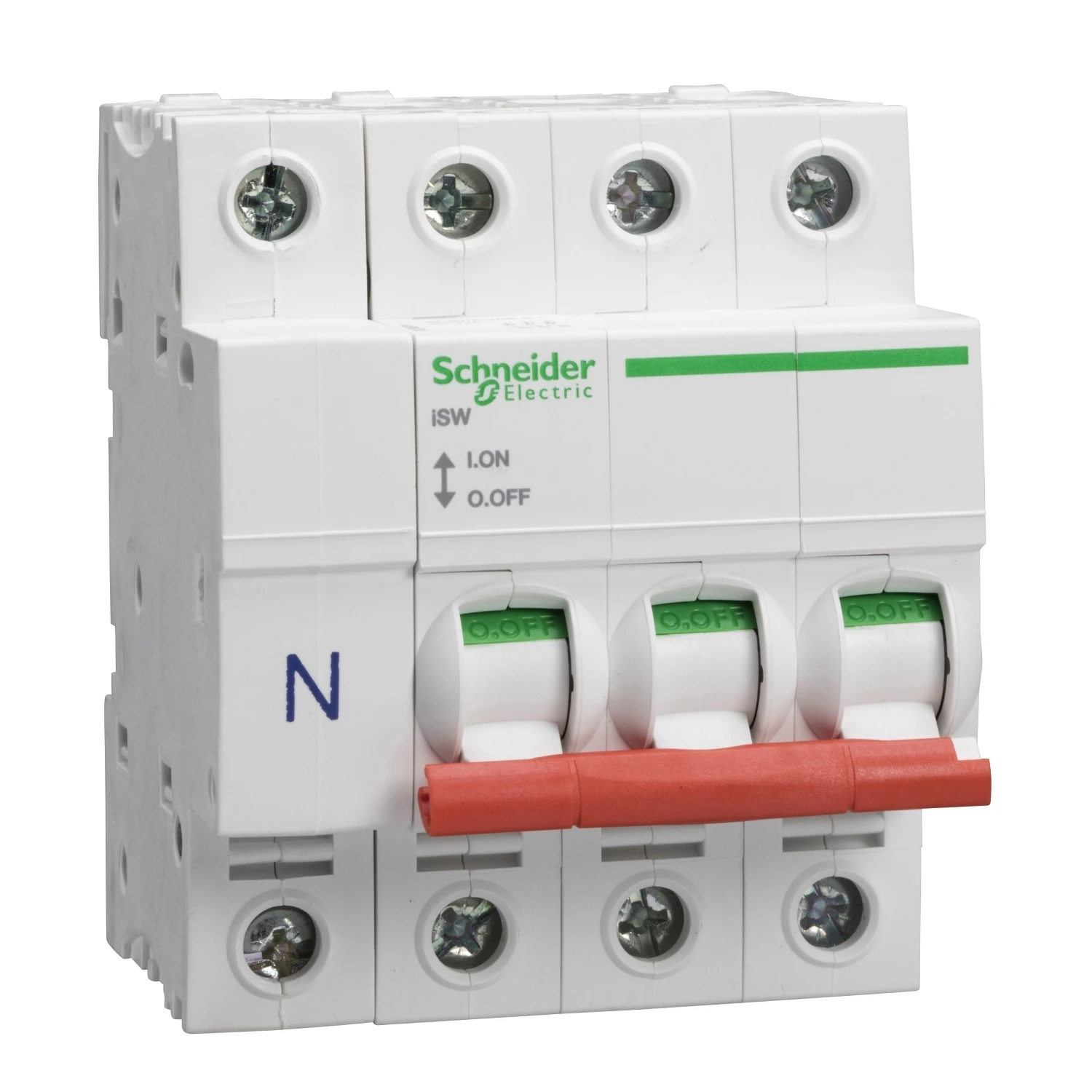

Incomer Kq Triple P+O5001:O5022Ole+Neutral Switch Disconnector 125A
Incomer Kq Triple P+O5001:O5022Ole+Neutral Switch Disconnector 125A
Incomer Kq Triple P+O5001:O5022Ole+Neutral Switch Disconnector 125A - Image 2
Incomer Kq Triple P+O5001:O5022Ole+Neutral Switch Disconnector 125A - Image 3

Incomer Kq Triple P+O5001:O5022Ole+Neutral Switch Disconnector 125A

£78.26 Incl. VAT

The Schneider LoadCentre KQ SE125SW3L is a 3 pole 125 amp main incoming switch disconnector with neutral link, designed to fit any LoadCentre KQ distribution type B boards. · · · BS EN 60947-3 Compliant · · 125A Rated · · Permanent non-removable factory fitted barriers · · 50% Fewer Connections, Reliable Connection · · Time Saving On Installation · · Time Saving On Installation · · Safety Feature – Throughout Offer · · Easier Installation And Cable Zoning · · Ease Of Installation (Plain/Knockouts) · · Easier Wiring On Control Devices

53 available – delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: SE125SW3L Categories: , , Brand: Part Number: 2500592245

Description

Technical Specifications  Technical Specifications Switch disconnector / isolator Max. rated operation voltage Ue AC 415 V Rated permanent current Iu 125 A Number of poles 4 Rated operating voltage 415 – 415 V Version as reversing switch No Suitable for intermediate mounting Yes Version as emergency stop installation No Suitable for distribution board installation Yes Interlockable Yes Voltage release optional No Motor drive optional No Version as maintenance-/service switch Yes Version as safety switch No Version as main switch Yes Motor drive integrated No Suitable for floor mounting No Suitable for front mounting 4-hole Yes Suitable for front mounting centre Yes · Technical Data Sheet – Click to Download
