Schneider Electric Incomer KQ Triple Pole+Neutral Switch Disconnector 250A 1700 x 1400 x 1700mm

Brand: Schneider ElectricProduct code: SE250SW3LGo Magpie Ref: 5060062387974

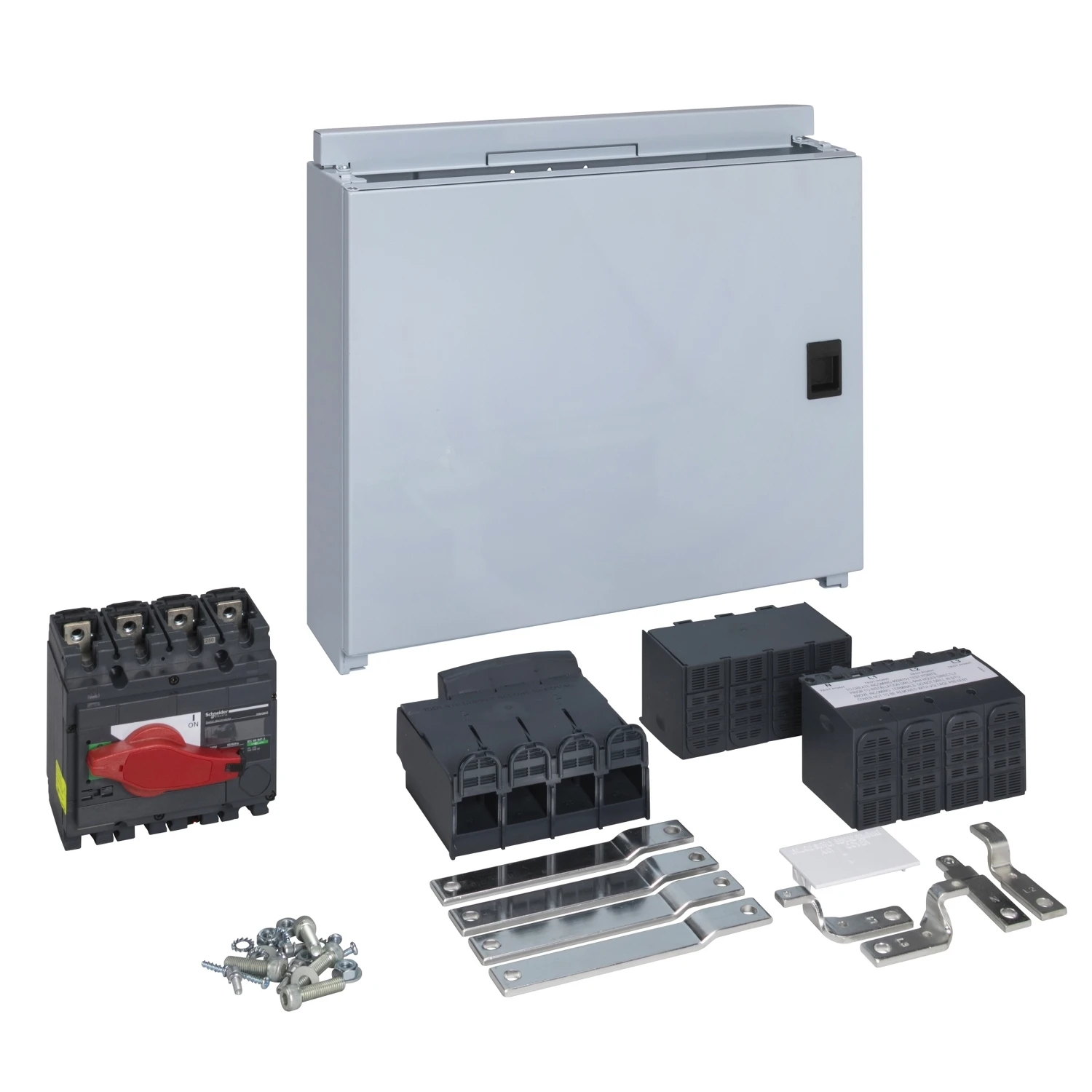

The Schneider LoadCentre KQ SE250SW3L is a 3 pole 250 amp main incoming switch disconnector with neutral link, designed to fit any LoadCentre KQ distribution type B boards, fitted in a supplied 400mm extension box. · · · Compatible with Loadcentre KQ B Type boards · · Other switch disconnector options available · · BS EN 60947-3 · · Suitable cable cross section, 185mm · · RoHS Compliant · · Supplied with 400mm extension box

£648.24inc VAT£540.20 ex VAT
In stock
UK deliveryStandard shipping is £2.99 inc VAT on eligible orders. Final delivery options are confirmed at checkout.
Quantity
1
✓ Secure checkout✓ UK customer support✓ Trusted suppliers
PRODUCT INFORMATION

Description

Technical Specifications  Technical Specifications Switch disconnector / isolator Rated permanent current Iu 250 A Number of auxiliary contacts as normally open contact 0 Number of auxiliary contacts as normally closed contact 0 Number of poles 4 Max. rated operation voltage Ue AC 455 V Number of auxiliary contacts as change-over contact 0 Number of switches 1 Rated operating voltage 415 – 415 V Version as main switch Yes Version as maintenance-/service switch No Version as safety switch No Version as emergency stop installation No Suitable for front mounting 4-hole No Motor drive integrated No Suitable for distribution board installation Yes Suitable for intermediate mounting No Interlockable No Suitable for front mounting centre No Version as reversing switch No Motor drive optional No Voltage release optional No · Technical Data Sheet – Click to Download
