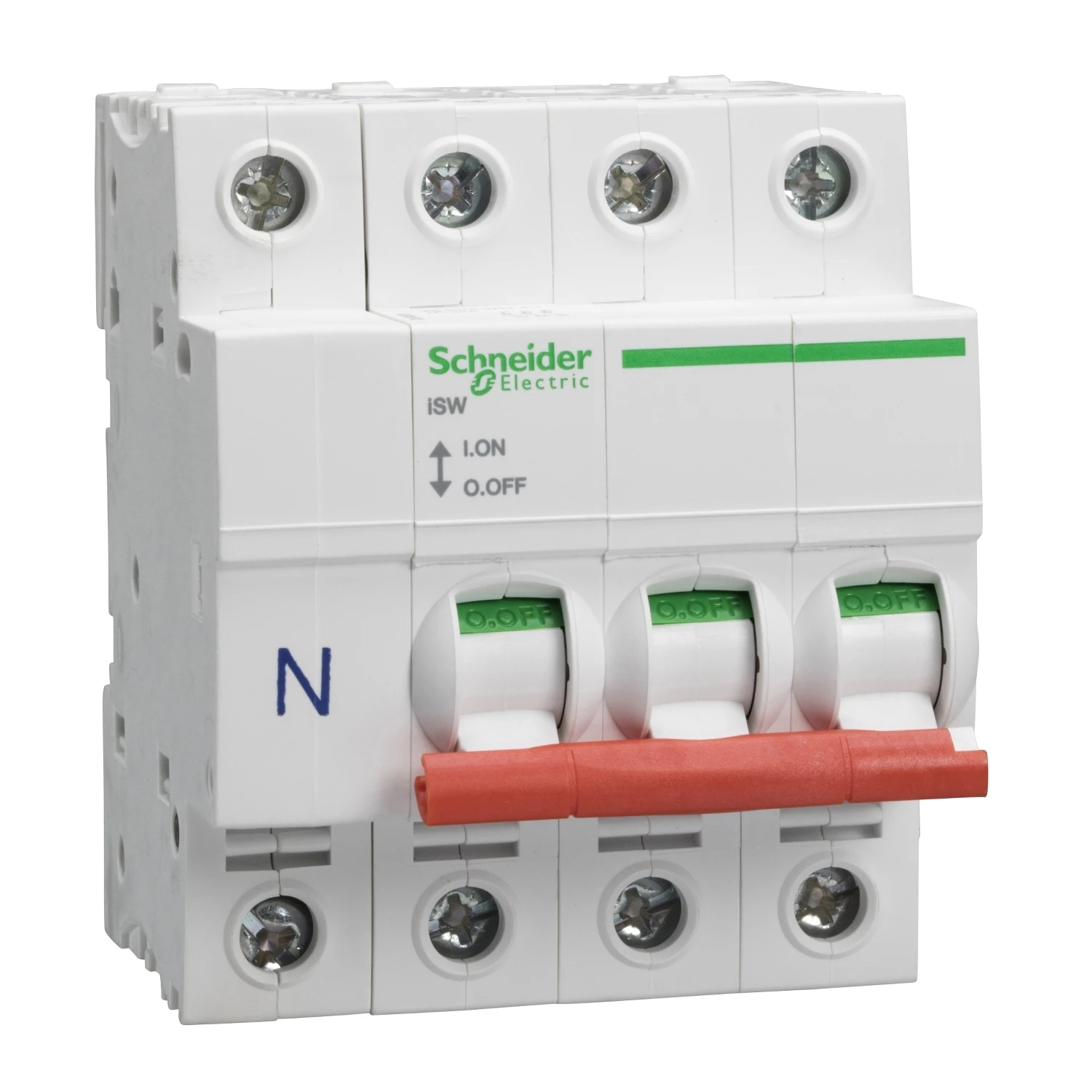

Incomer Triple Pole+Neutral Switch Disconnector 125A
Incomer Triple Pole+Neutral Switch Disconnector 125A
Incomer Triple Pole+Neutral Switch Disconnector 125A - Image 2
Incomer Triple Pole+Neutral Switch Disconnector 125A - Image 3

Incomer Triple Pole+Neutral Switch Disconnector 125A

£115.40 Incl. VAT

This Acti9 iSW product is a modular and reliable switch disconnector. It is a 3P+N switch disconnector with 125A rated operational current (le). The rated operational voltage (Ue) is up to 415VAC. This switch disconnector is used for control (opening and closing of circuits under load). This product is also used for disconnection of on-load electrical circuits already protected against overload and short-circuits. It is compatible with the use of a distribution board. · · · Triple Pole Incoming Switch · · Annealed stranded copper conductors · · Annealed stranded copper conductors

210 available – delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: SEA91253N Categories: , , Brand: Part Number: 2500586090

Description

Technical Specifications  Technical Specifications Switch disconnector / isolator Rated permanent current Iu 125 A Max. rated operation voltage Ue AC 415 V Number of poles 4 Voltage release optional No Motor drive optional No Version as reversing switch No Suitable for intermediate mounting Yes Suitable for distribution board installation Yes Interlockable Yes Rated operating voltage 415 – 415 V Suitable for front mounting 4-hole Yes Suitable for front mounting centre Yes Motor drive integrated No Suitable for floor mounting No Version as main switch Yes Version as maintenance-/service switch Yes Version as safety switch No Version as emergency stop installation No · Technical Data Sheet – Click to Download
