Inductive Sensor

£112.22 Incl. VAT

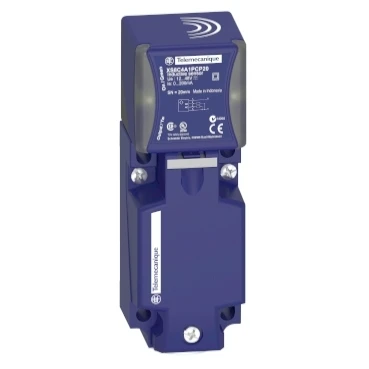

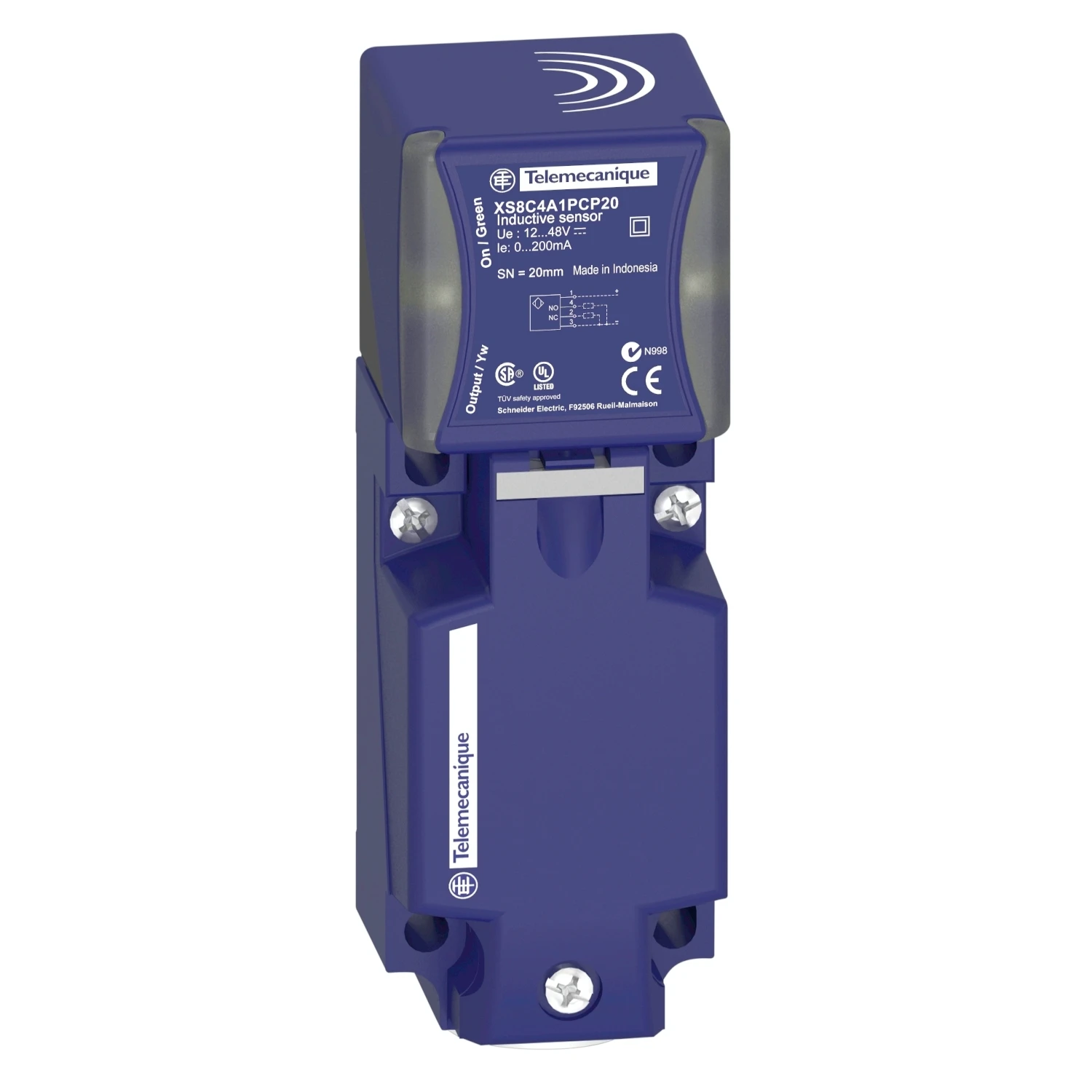

This XS turret head (40 x 40 x 117 mm) with an inductive proximity sensor has a PBT case. It has a supply voltage of 12V to 48V DC. This general purpose flat inductive proximity sensor has an increased range. It is mountable directly on a surface, thanks to 4 screws fixing points. It provides mechanical resistance and chemical withstand thanks to PBT case. It has a yellow LED for output status indication for easier sensor setup and troubleshooting. It can operate in very cold (-25°C) and hot environments (+70°C). Its increased sensing range makes it ideal for process where precise circulation of objects is not possible. It is CCC, ECOLAB, CSA, UL certified. · · · This XS turret head (40 x 40 x 117 mm) with an inductive proximity sensor has a PBT case. · · It has a supply voltage of 12V to 48V DC. · · This general purpose flat inductive proximity sensor has an increased range. · · It is mountable directly on a surface, thanks to 4 screws fixing points. · · It provides mechanical resistance and chemical withstand thanks to PBT case. · · IP69K conforming to DIN 40050.

Out of stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: XS8C4A1NCP20 Categories: , , Brand: Part Number: 2500818325

Description

Technical Specifications  Technical Specifications Inductive proximity switch SIL according to IEC 61508 None Performance level acc. to EN ISO 13849-1 None Housing material Plastic Interface type None Type of interface for safety communication None Explosion safety category for dust None Explosion safety category for gas None Construction type housing Cuboid Mechanical mounting condition for sensor Concise Interference resistance to magnetic fields Immune against magnetic DC-field Diameter sensor – mm Switching frequency 300 Hz Type of electric connection Screw connection Type of actuation Metallic Target Voltage type AC/DC Type of switching output NPN/NPN Number of contact energized outputs with signalling function 0 Height of sensor 40 mm Length of sensor 40 mm Width sensor 117 mm Number of semiconductor outputs with signalling function 2 Switching distance 20 mm Number of protected contact energized outputs 0 Number of protected semiconductor outputs 2 Max. output current at protected output 200 mA Rated control supply voltage at AC 50 Hz – V Rated control supply voltage at AC 60 Hz – V Supply voltage 12 – 48 V Rated control supply voltage at DC 12 – 48 V Cascadable No Suitable for safety functions No With monitoring function downstream switching devices No Compression-resistant No · Technical Data Sheet – Click to Download
