Inductive Sensor Xs4m12 L52mm Pps Sn4mm 12-48Vdc Cable 2M
Inductive Sensor Xs4m12 L52mm Pps Sn4mm 12-48Vdc Cable 2M
Inductive Sensor Xs4m12 L52mm Pps Sn4mm 12-48Vdc Cable 2M - Image 2
Inductive Sensor Xs4m12 L52mm Pps Sn4mm 12-48Vdc Cable 2M - Image 3
Inductive Sensor Xs4m12 L52mm Pps Sn4mm 12-48Vdc Cable 2M - Image 4

Inductive Sensor Xs4m12 L52mm Pps Sn4mm 12-48Vdc Cable 2M

£79.45 Incl. VAT

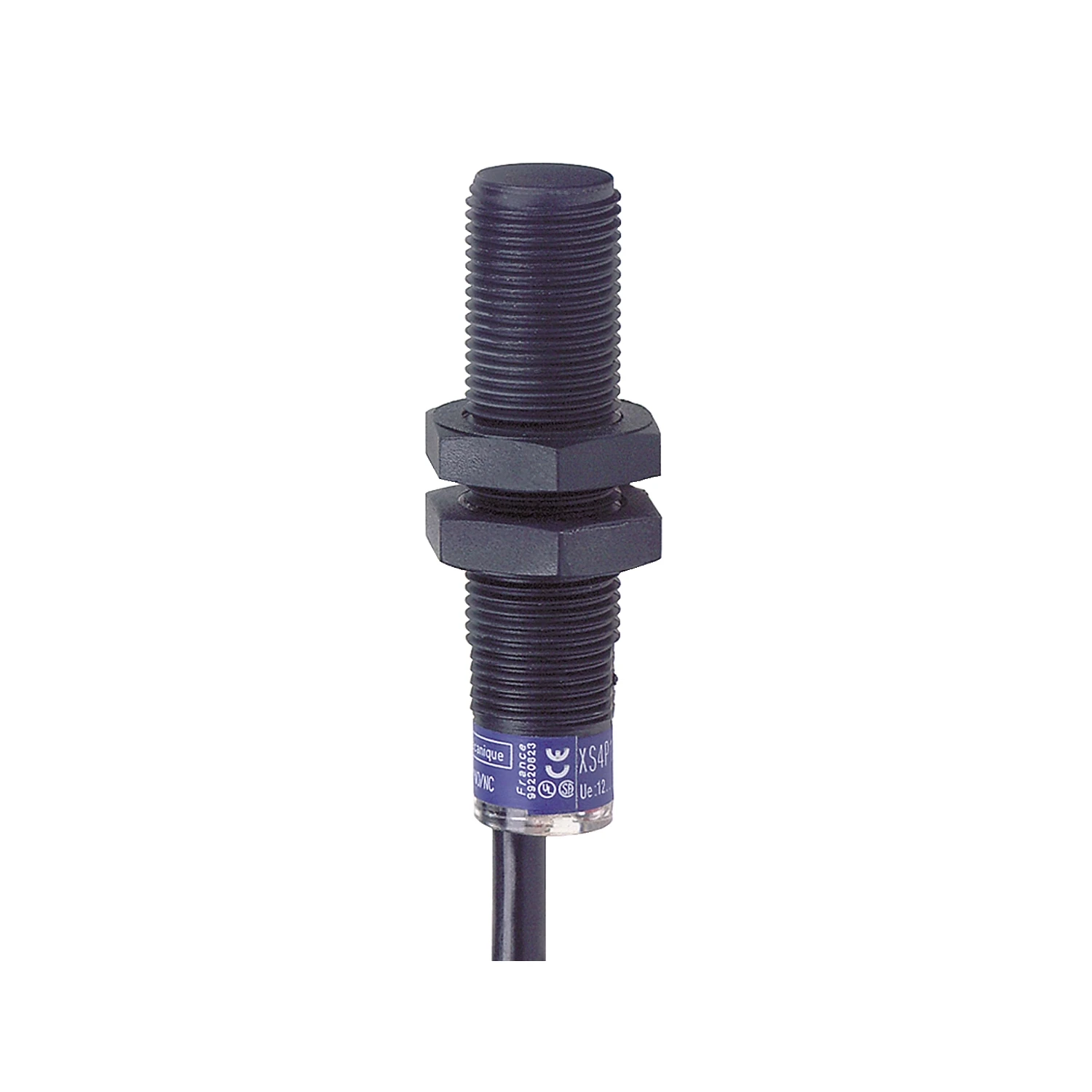

The XS range is an offer of inductive proximity sensors for the detection, without physical contact, of metal objects. The advantages of inductive detection are numerous, no physical contact with the object to be detected. Thus avoiding wear and enabling detection of fragile or freshly painted objects. High operating rates. Fast response. Excellent resistance to industrial environments (robust products, fully encapsulated in resin). This product is a cylindrical, non flush mountable sensor. Diameter 12mm, threaded M12 x 1. It features a plastic case and a 2m long PvR cable. It has a sensing distance of 4mm. Three-wire, DC supply, 12V to 48V, NO function, PNP discrete output. This sensor is ECOLAB certified. · · · The XS range is an offer of inductive proximity sensors for the detection, without physical contact, of metal objects. · · The advantages of inductive detection are numerous, no physical contact with the object to be detected. · · Thus avoiding wear and enabling detection of fragile or freshly painted objects. · · High operating rates. Fast response. Excellent resistance to industrial environments (robust products, fully encapsulated in resin). · · This product is a cylindrical, non flush mountable sensor. Diameter 12mm, threaded M12 x 1. · · Thread Size: M12 X 1 · · Weight: 0.065kg

Out of stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: XS4P12PA370 Categories: , , Brand: Part Number: 2500047705

Description

Technical Specifications  Technical Specifications Inductive proximity switch Explosion safety category for gas None Housing material Plastic Performance level acc. to EN ISO 13849-1 None Type of interface for safety communication None Interface type None SIL according to IEC 61508 None Explosion safety category for dust None Construction type housing Cylinder, screw-thread Mechanical mounting condition for sensor Not flat Type of switching output PNP/PNP Width sensor – mm Switching frequency 5000 Hz Type of switch function Normally open contact Type of electric connection Cable radial Voltage type AC/DC Type of actuation Metallic Target Interference resistance to magnetic fields Immune against magnetic DC- and AC-field Number of contact energized outputs with signalling function 0 Length of sensor 35 mm Number of protected semiconductor outputs 0 Number of semiconductor outputs with signalling function 1 Switching distance 4 mm Number of protected contact energized outputs 0 Diameter sensor 12 mm Height of sensor – mm Max. output current at protected output 200 mA Rated control supply voltage at AC 50 Hz – V Rated control supply voltage at AC 60 Hz – V Supply voltage 12 – 48 V Rated control supply voltage at DC 12 – 48 V Suitable for safety functions No Cascadable No With monitoring function downstream switching devices No Compression-resistant No · Technical Data Sheet – Click to Download
