Inductive Sensor Xs5m12 L50mm Brass Sn2mm 12-24Vdcm12
£58.61 Incl. VAT

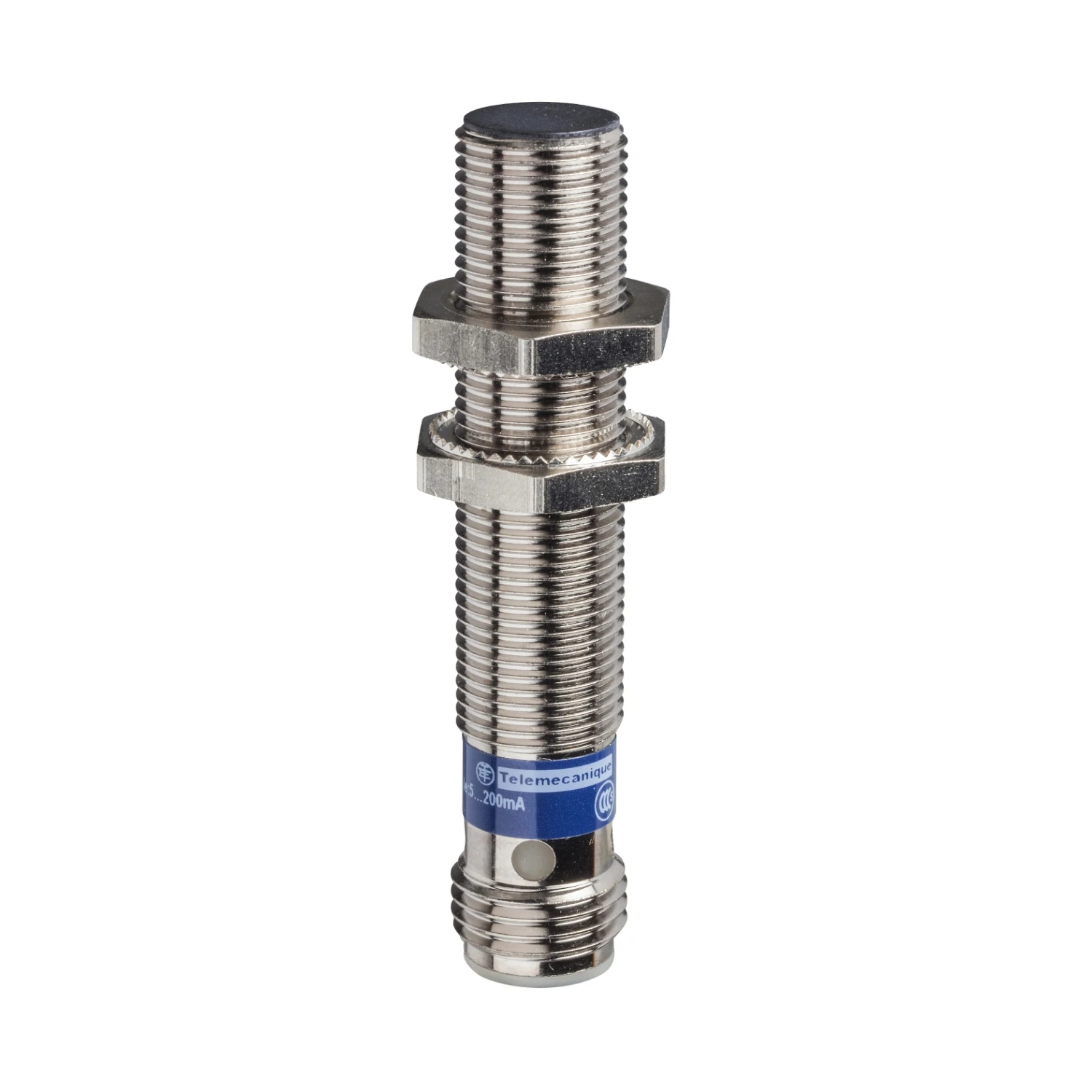

This XS cylindrical (M12 thread) inductive proximity sensor has a PPS sensing face and a nickel plated brass case. It has a supply voltage of 12V to 24V DC. This general purpose threaded cylindrical inductive proximity sensor is flush mountable. It is mountable directly on a surface or bracket, thanks to its outer thread and twin nuts. Corrosion-resistant and non-magnetic nickel plated brass provides magnetic shielding to the sensor, better accuracy and immunity to magnetic disturbance. It has 4 LED viewports for easy sensor status viewing, setup and troubleshooting. IP65, IP68 and IP69K protection makes this product ready for the harshest environments. It can operate in very cold (-25°C) and hot environments (+70°C). It has a standard M12 connector, compatible with all existing market sensor cabling. It is CCC, CSA, UL certified. · · · This XS cylindrical (M12 thread) inductive proximity sensor has a PPS sensing face and a nickel plated brass case. · · It has a supply voltage of 12V to 24V DC. · · This general purpose threaded cylindrical inductive proximity sensor is flush mountable. · · It is mountable directly on a surface or bracket, thanks to its outer thread and twin nuts. · · Corrosion-resistant and non-magnetic nickel plated brass provides magnetic shielding to the sensor, better accuracy and immunity to magnetic disturbance. · · It has 4 LED viewports for easy sensor status viewing, setup and troubleshooting. · · IP65, IP68 and IP69K protection makes this product ready for the harshest environments. · · It can operate in very cold (-25°C) and hot environments (+70°C). · · It has a standard M12 connector, compatible with all existing market sensor cabling. · · It is CCC, CSA, UL certified.
Out of stock
Description
Technical Specifications Technical Specifications Inductive proximity switch Type of interface for safety communication None Interface type None SIL according to IEC 61508 None Explosion safety category for dust None Explosion safety category for gas None Performance level acc. to EN ISO 13849-1 None Construction type housing Cylinder, screw-thread Coating housing Nickel-plated Housing material Metal Type of switch function Normally open contact Interference resistance to magnetic fields Immune against magnetic DC- and AC-field Type of actuation Metallic Target Voltage type AC/DC Type of switching output PNP/PNP Type of electric connection Connector M12 Mechanical mounting condition for sensor Concise Max. output current at protected output 200 mA Number of semiconductor outputs with signalling function 1 Width sensor – mm Switching frequency 5000 Hz Length of sensor 35 mm Diameter sensor 12 mm Number of protected semiconductor outputs 1 Number of protected contact energized outputs 0 Switching distance 2 mm Number of contact energized outputs with signalling function 0 Height of sensor – mm Rated control supply voltage at AC 50 Hz – V Supply voltage 12 – 24 V Rated control supply voltage at AC 60 Hz – V Rated control supply voltage at DC 12 – 24 V Compression-resistant No With monitoring function downstream switching devices No Suitable for safety functions No Cascadable No · Technical Data Sheet – Click to Download
