Telemecanique Sensors Inductive Sensor Xs5m18 L50mm Brass Sn5mm 12-24Vdcm12
Telemecanique Sensors Inductive Sensor Xs5m18 L50mm Brass Sn5mm 12-24Vdcm12
Telemecanique Sensors Inductive Sensor Xs5m18 L50mm Brass Sn5mm 12-24Vdcm12 - Image 2
Telemecanique Sensors Inductive Sensor Xs5m18 L50mm Brass Sn5mm 12-24Vdcm12 - Image 3
Telemecanique Sensors Inductive Sensor Xs5m18 L50mm Brass Sn5mm 12-24Vdcm12 - Image 4

Telemecanique Sensors Inductive Sensor Xs5m18 L50mm Brass Sn5mm 12-24Vdcm12

£42.23 Incl. VAT

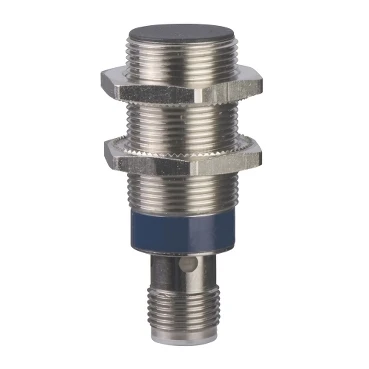

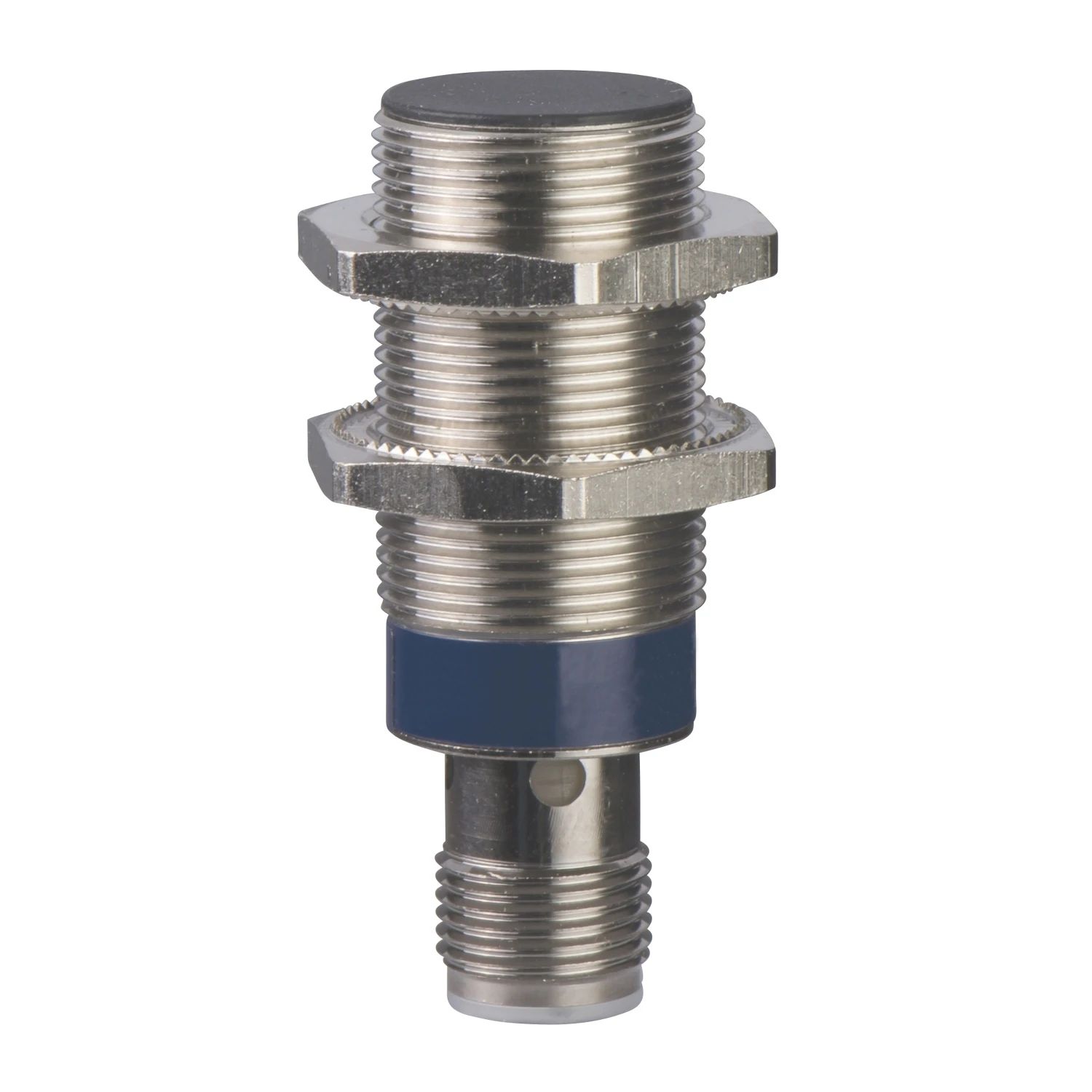

This XS cylindrical (M18 thread) inductive proximity sensor has a PPS sensing face and a nickel plated brass case. It has a supply voltage of 12V to 24V DC. This general purpose threaded cylindrical inductive proximity sensor is flush mountable. It is mountable directly on a surface or bracket, thanks to its outer thread and twin nuts. Corrosion-resistant and non-magnetic nickel plated brass provides magnetic shielding to the sensor, better accuracy and immunity to magnetic disturbance. It has 4 LED viewports for easy sensor status viewing, setup and troubleshooting. IP65, IP68 and IP69K protection makes this product ready for the harshest environments. It can operate in very cold (-25°C) and hot environments (+70°C). It has a standard M12 connector, compatible with all existing market sensor cabling. It is CCC, CSA, UL certified. · · · This XS cylindrical (M18 thread) inductive proximity sensor has a PPS sensing face and a nickel plated brass case. · · It has a supply voltage of 12V to 24V DC. · · This general purpose threaded cylindrical inductive proximity sensor is flush mountable. · · It is mountable directly on a surface or bracket, thanks to its outer thread and twin nuts. · · Corrosion-resistant and non-magnetic nickel plated brass provides magnetic shielding to the sensor, better accuracy and immunity to magnetic disturbance. · · It has 4 LED viewports for easy sensor status viewing, setup and troubleshooting. · · IP65, IP68 and IP69K protection makes this product ready for the harshest environments. · · It can operate in very cold (-25°C) and hot environments (+70°C). · · It has a standard M12 connector, compatible with all existing market sensor cabling. · · It is CCC, CSA, UL certified.

Typically available in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: XS518B1PAM12 Categories: , , Brand: Product Code: 2500165816

Description

Technical Specifications  Technical Specifications Inductive proximity switch Interface type None Type of interface for safety communication None Explosion safety category for dust None SIL according to IEC 61508 None Explosion safety category for gas None Performance level acc. to EN ISO 13849-1 None Construction type housing Cylinder, screw-thread Coating housing Nickel-plated Type of electric connection Connector M12 Mechanical mounting condition for sensor Concise Type of switching output PNP/PNP Housing material Metal Interference resistance to magnetic fields Immune against magnetic DC- and AC-field Type of switch function Normally open contact Voltage type AC/DC Type of actuation Metallic Target Number of protected semiconductor outputs 0 Number of contact energized outputs with signalling function 0 Height of sensor – mm Width sensor – mm Diameter sensor 18 mm Number of semiconductor outputs with signalling function 1 Length of sensor 50 mm Max. output current at protected output 200 mA Number of protected contact energized outputs 0 Switching distance 5 mm Switching frequency 2000 Hz Rated control supply voltage at AC 50 Hz – V Rated control supply voltage at AC 60 Hz – V Supply voltage 12 – 24 V Rated control supply voltage at DC 12 – 24 V Suitable for safety functions No With monitoring function downstream switching devices No Cascadable No Compression-resistant No · Technical Data Sheet – Click to Download
