Inductive Sensor Xs6m30 L62mm Brass Sn15mm 12-48Vdc Cable 10M
Inductive Sensor Xs6m30 L62mm Brass Sn15mm 12-48Vdc Cable 10M
Inductive Sensor Xs6m30 L62mm Brass Sn15mm 12-48Vdc Cable 10M - Image 2
Inductive Sensor Xs6m30 L62mm Brass Sn15mm 12-48Vdc Cable 10M - Image 3
Inductive Sensor Xs6m30 L62mm Brass Sn15mm 12-48Vdc Cable 10M - Image 4

Inductive Sensor Xs6m30 L62mm Brass Sn15mm 12-48Vdc Cable 10M

£101.76 Incl. VAT

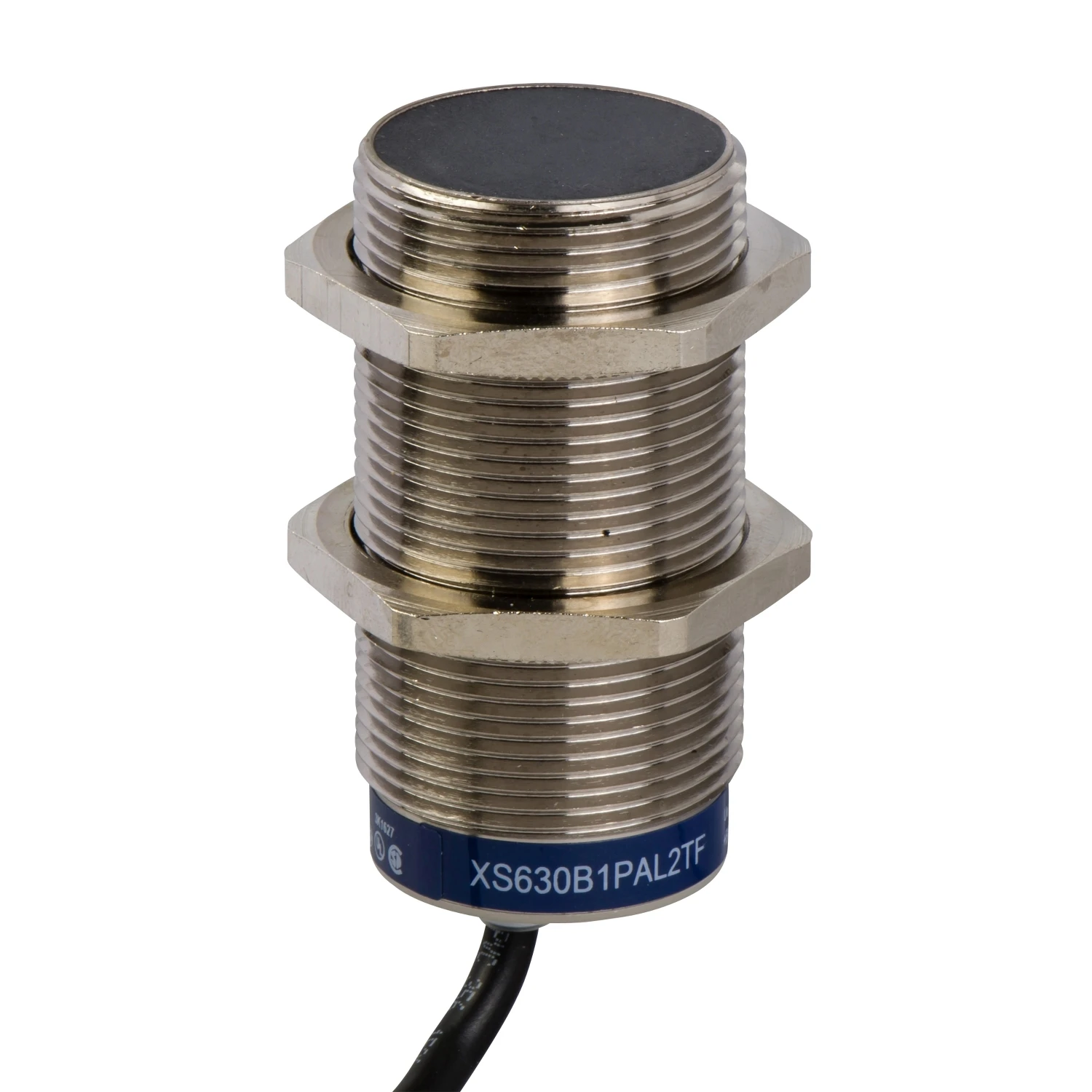

The XS range is an offer of inductive proximity sensors for the detection, without physical contact, of metal objects. The advantages of inductive detection are numerous, no physical contact with the object to be detected. Thus avoiding wear and enabling detection of fragile or freshly painted objects. High operating rates. Fast response. Excellent resistance to industrial environments (robust products, fully encapsulated in resin). This product is a cylindrical, long case, flush mountable sensor. Diameter 30mm, threaded M30 x 1.5. It features a nickel plated brass case and a 10m long PvR cable. It has a sensing distance of 15mm. Three-wire, DC supply, 12V to 48V, NO function, PNP discrete output. · · · The XS range is an offer of inductive proximity sensors for the detection, without physical contact, of metal objects. · · The advantages of inductive detection are numerous, no physical contact with the object to be detected. · · Thus avoiding wear and enabling detection of fragile or freshly painted objects. · · High operating rates. Fast response. Excellent resistance to industrial environments (robust products, fully encapsulated in resin). · · This product is a cylindrical, long case, flush mountable sensor. Diameter 30mm, threaded M30 x 1.5. · · Weight: 0.525kg

Out of stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: XS630B1PAL10 Categories: , , Brand: Part Number: 2500213836

Description

Technical Specifications  Technical Specifications Inductive proximity switch Performance level acc. to EN ISO 13849-1 None Type of interface for safety communication None SIL according to IEC 61508 None Interface type None Explosion safety category for gas None Explosion safety category for dust None Construction type housing Cylinder, screw-thread Coating housing Nickel-plated Mechanical mounting condition for sensor Concise Interference resistance to magnetic fields Immune against magnetic DC-field Switching frequency 500 Hz Type of electric connection Cable radial Voltage type AC/DC Type of actuation Metallic Target Type of switching output PNP/PNP Type of switch function Normally open contact Housing material Metal Height of sensor – mm Number of protected semiconductor outputs 1 Length of sensor 60 mm Number of semiconductor outputs with signalling function 1 Diameter sensor 30 mm Number of protected contact energized outputs 0 Number of contact energized outputs with signalling function 0 Width sensor – mm Max. output current at protected output 200 mA Switching distance 15 mm Rated control supply voltage at AC 50 Hz – V Rated control supply voltage at AC 60 Hz – V Supply voltage 12 – 48 V Rated control supply voltage at DC 12 – 48 V Suitable for safety functions No With monitoring function downstream switching devices No Cascadable No Compression-resistant No · Technical Data Sheet – Click to Download
