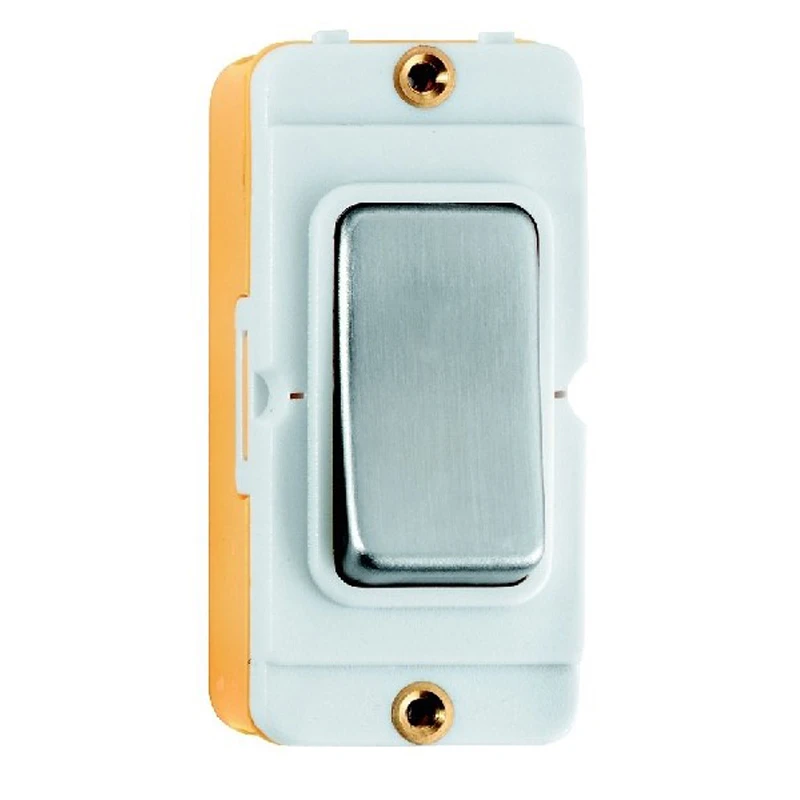

Insert Rocker 1 Gang 2 Way 20A Satin Steel/White
£12.41 Incl. VAT
Hamilton Grid Fix Rocker Switch is available in satin steel finish with a white surround and complaint to BS EN 60669-1 standards. It conforms to current British or European standards and the product information is correct at the time of going to press. Features due to manufacturing processes we cannot guarantee an exact colour match and shadings of certain finishes. Face plate must be earthed. Internal Use Only. · · · Module Dimensions H: 51mm W: 23mm D: 21mm · · Generic Size: Module · · Switched Poles: Single · · Current Rating: 20AX · · Voltage: 220/250V AC · · Maximum Load 20 Amp inductive · · Mains Frequency: 50Hz · · IP Rating: IP2XD · · Standard/Approval: BS EN 60669-1 · · Insert Finish/Surround Colour: Satin Steel/White
Out of stock
Description
Technical Specifications Technical Specifications Switch Mounting method Module frame/grid Method of operation Rocker Assembly Insert for modular wiring accessories Illumination No Wiring system Two-way switch Number of module spaces (modular system) 1 Number of rockers/gangs 1 Depth of device 35 mm Rated current 20 A · Technical Data Sheet – Click to Download
