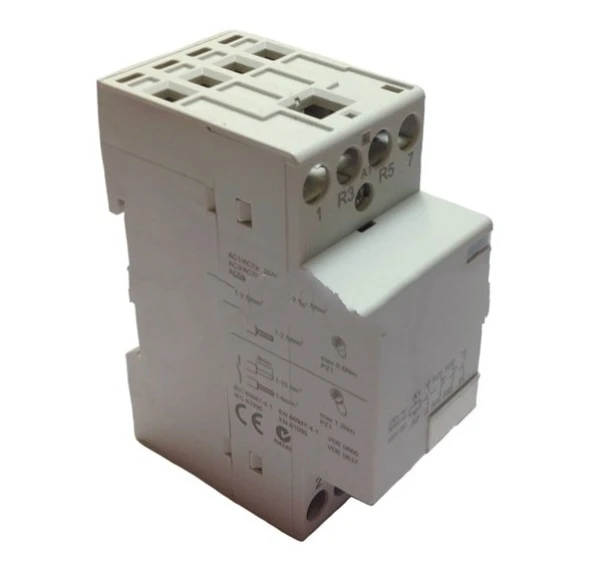

Eaton Installation contactor 25A 230V AC 2NO+2NC
Eaton Installation contactor 25A 230V AC 2NO+2NC
Eaton Installation contactor 25A 230V AC 2NO+2NC - Image 2

Eaton Installation contactor 25A 230V AC 2NO+2NC

£50.88 Incl. VAT

Installation contactor, rated control circuit voltage 230V AC, rated operational current at AC1 25A, function: 2NO + 2NC, details according to IEC/EN 61095, IEC/EN 60947-4-1, standard front dimension 45 mm, mounting width 2 MU, top-hat rail mounting · · · Complete and configurable enclosures MCBs, MCCBs, ACBs

✓ In stock – Delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: CR2522230A Categories: , , , , , Brand: Product Code: 2500204821

Description

Technical Specifications  Technical Specifications Contactor for distribution board installation Utilization category according to EN IEC 60947-4-1 AC-1 Degree of protection (IP rating) IP20 Voltage type (excitation voltage) AC Recess depth 60 mm Max. load fluorescent lamp 1200 VA Voltage type (operating voltage) AC Max. incandescent lamp load 2200 W Width in number of modular spacings 2 Number of contacts as normally closed contact 2 Number of contacts as normally open contact 2 Max. load fluorescent lamp (Duo circuit) 1440 VA Max. load fluorescent lamp (parallel compensated) 400 VA Rated operation current 25 A Rated operating voltage 400 – 400 V Rated excitation voltage 195.5 – 253 V Slider for hand switch No With day/night function No Additional equipment possible Yes Hum-free No · Technical Data Sheet – Click to Download · Technical Data Sheet – Click to Download · Technical Data Sheet – Click to Download
